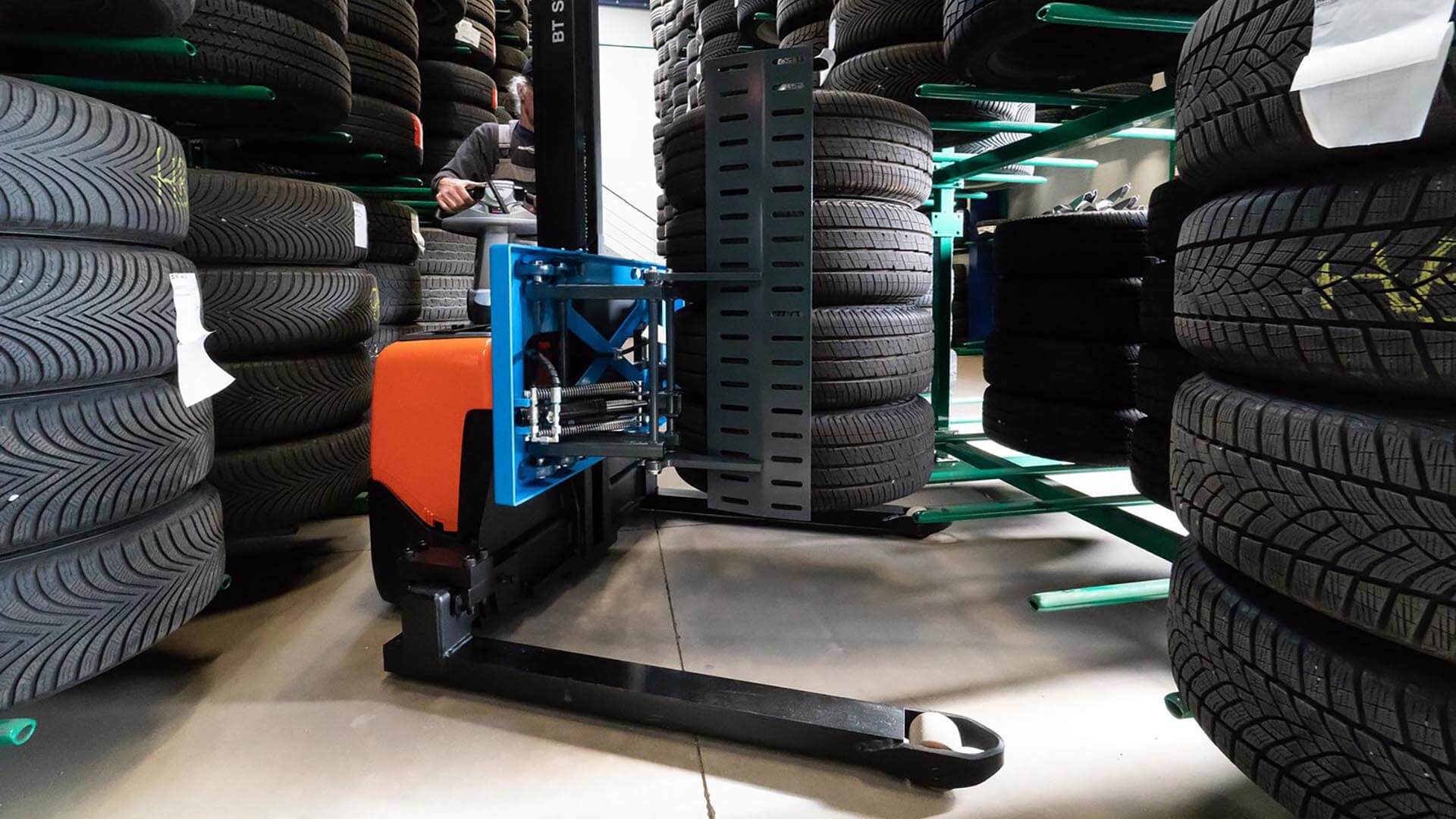

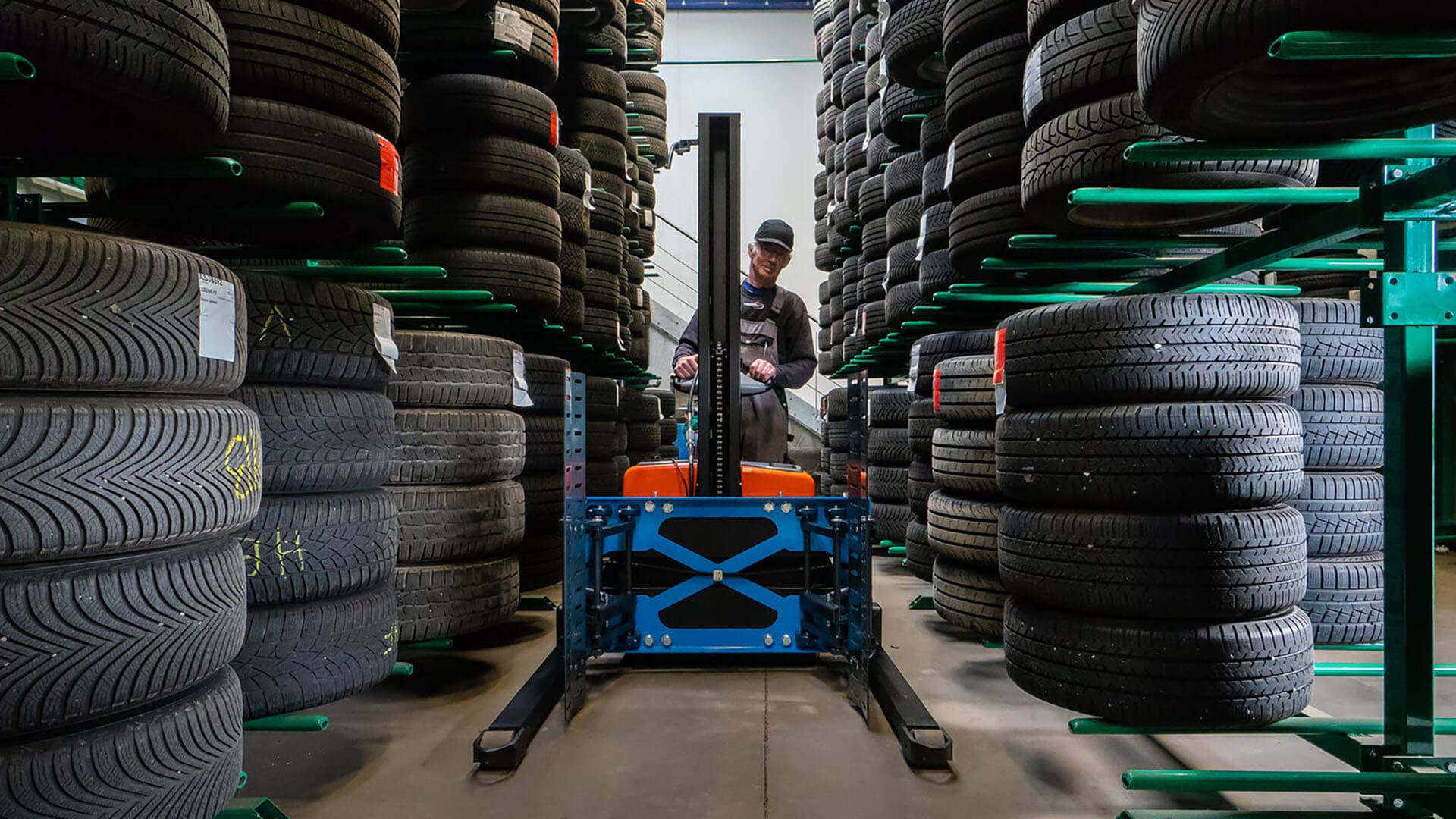

EASY STACKER 800

Safe and efficient handling of stacks of car tyres and wheels

The Easy Stacker 800 is developed for safe and efficient handling of stacks of car tyres and wheels with a focus on effective use of space to optimize the storage capacity.

Capability

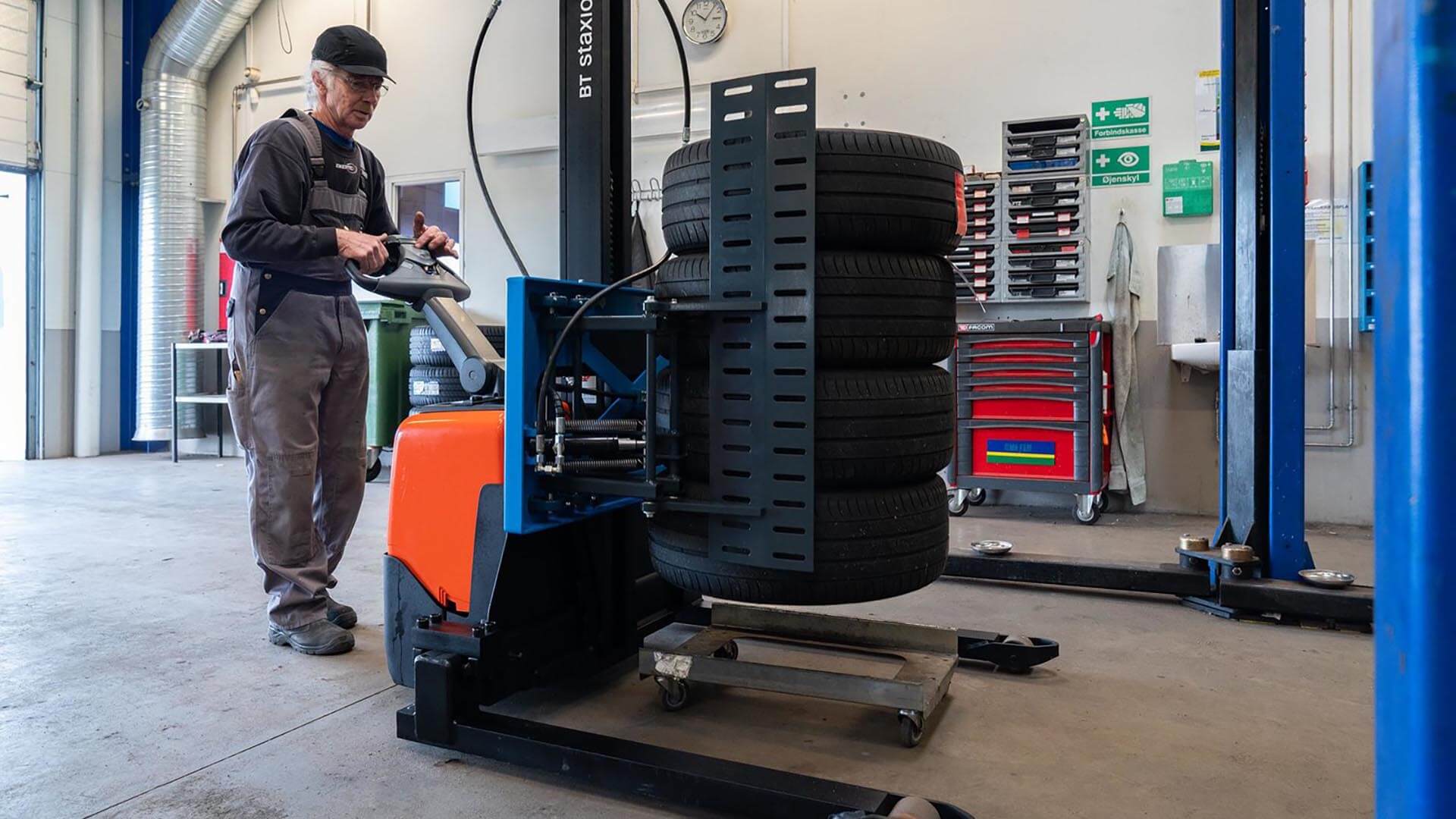

With a gripping range of Ø400 – 800 mm (16-31”) and a lifting capacity of 160 kg (352 lbs), the Easy Stacker 800 can handle stacks of almost any car tyre with or without rims in sets of 4.

Standard features

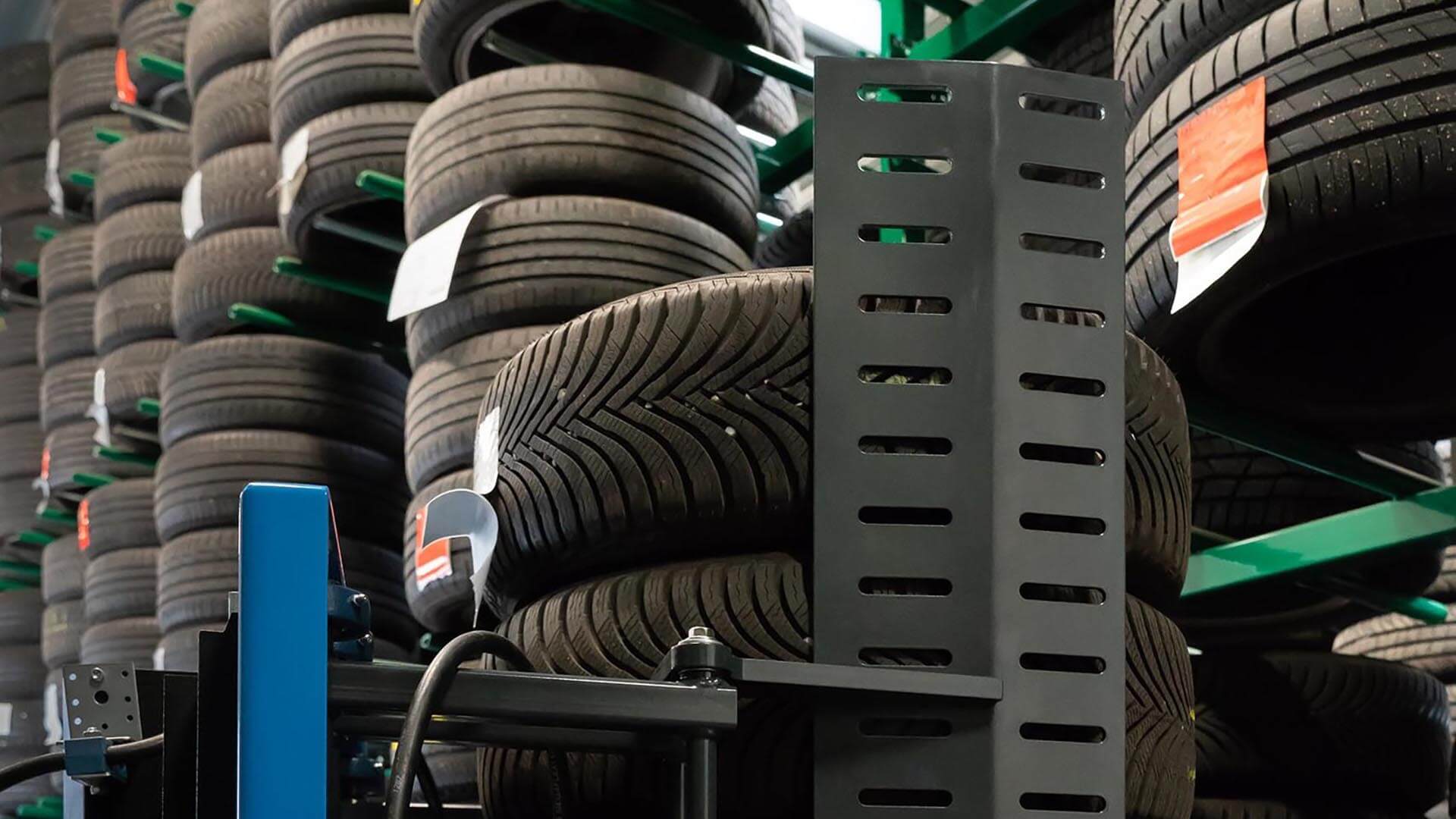

  • The secure and firm grip on the tyres and wheels eliminates e.g. the risk of losing the tyres from the height
  • Designed to work on a small electrical stacker or forklift in order to reduce manual and stressful operations

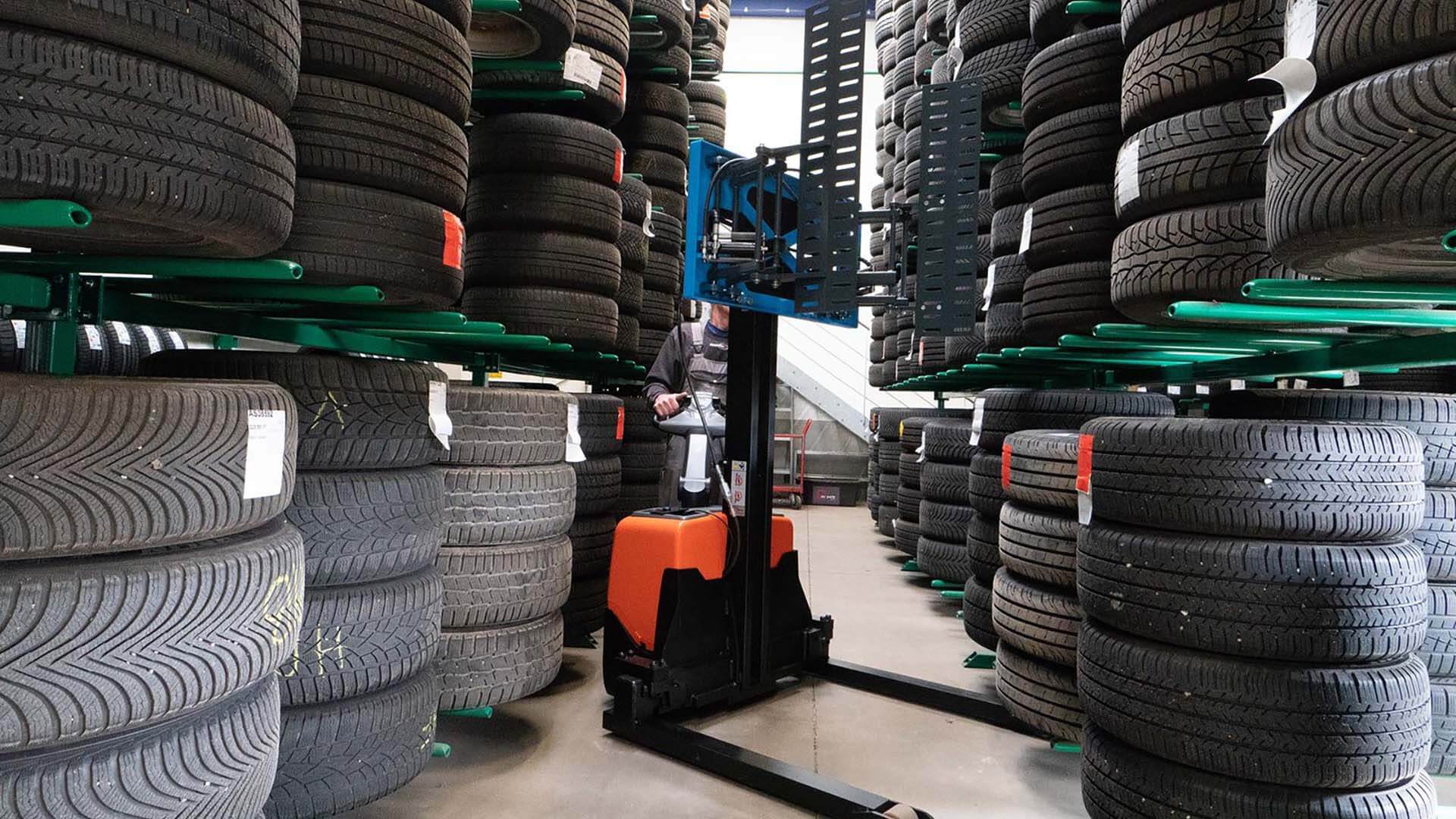

  • Can place stacks of tyres and wheels very close to each other in order to optimize the storage capacity

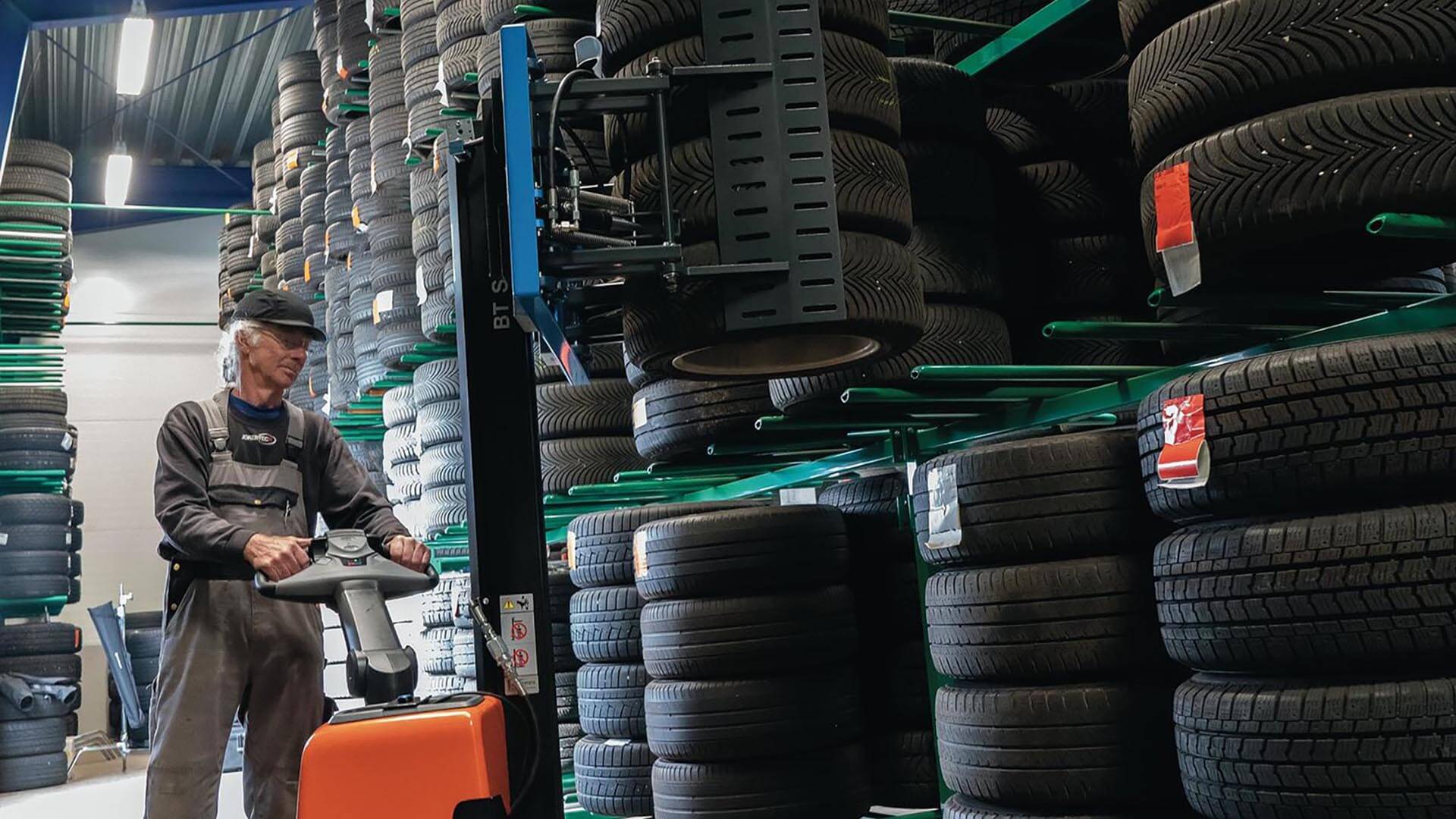

  • Can work as high as the stacker you choose for your configuration

Optional features

  • The length of the gripping panels can be customized to your requirements
  • Can be customized to handle rims

Customized solution

  1. Can be installed on existing electrical stacker. To be build-in in existing single or double acting hydraulic systems. Requires the hydraulic to be run through mast. Delivered with hydraulic diverting valve, control box and Class 2 mounting blocks.
  2. Can be installed on existing electrical stacker, but delivered with a build-in PowerPack (self-contained hydraulic system) incl. complete control system and Class 2 mounting blocks. Require an electrical supply for the PowerPack.
  3. Can be delivered as a “READY TO GO” turnkey solution incl. electrical stacker. Standard lifting height is 3.20 m or 4.35 m. Can be further customized regarding lifting height of stacker.

Technical specifications

  • Weight: 70 kg (154 lbs)
  • Lifting capacity: 160 kg (352 lbs)
  • Tyre diameter: 400 – 800 mm (15-31”)
  • Grip length: 950 mm (37”) can be customized
  • Attachment: ISO/FEM/ITA Class 2

Technical Requirements

  • Lifting capacity: Min. 250 kg depending on carrier
  • Hydraulic: 1 single or double acting hydraulic valve
  • Electrical supply: 24V / min 10A (only if delivered with PowerPack)

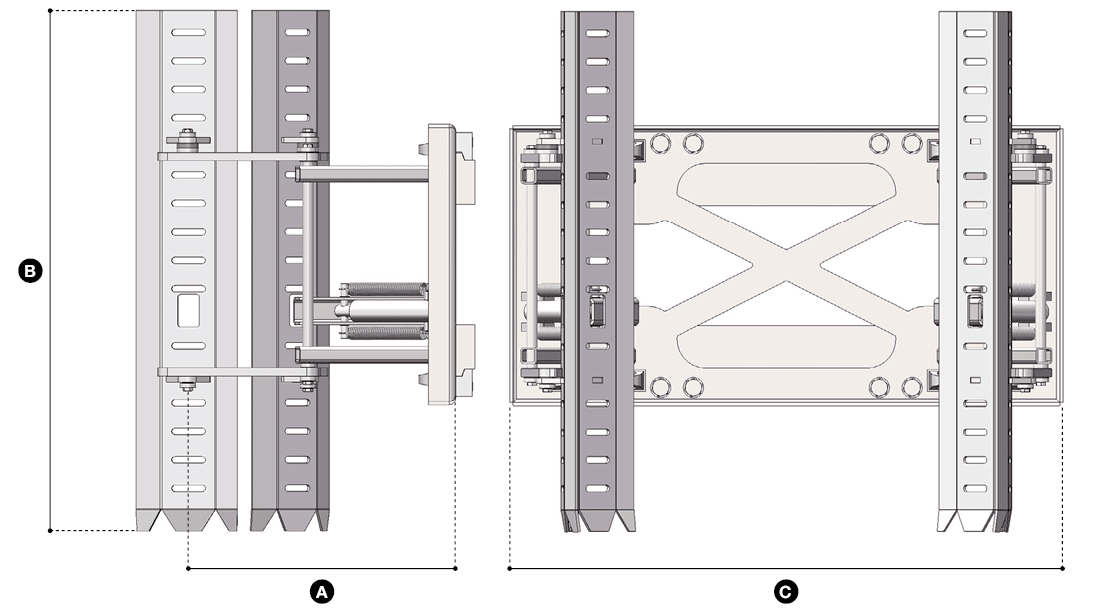

Explanatory description

(A) Depth: 500 mm (20”)
(B) Height: 950 mm (37”)
(C) Width: 1.000 mm (39”)
