EASY STACKER 1200

Developed for optimal handling of truck tyres

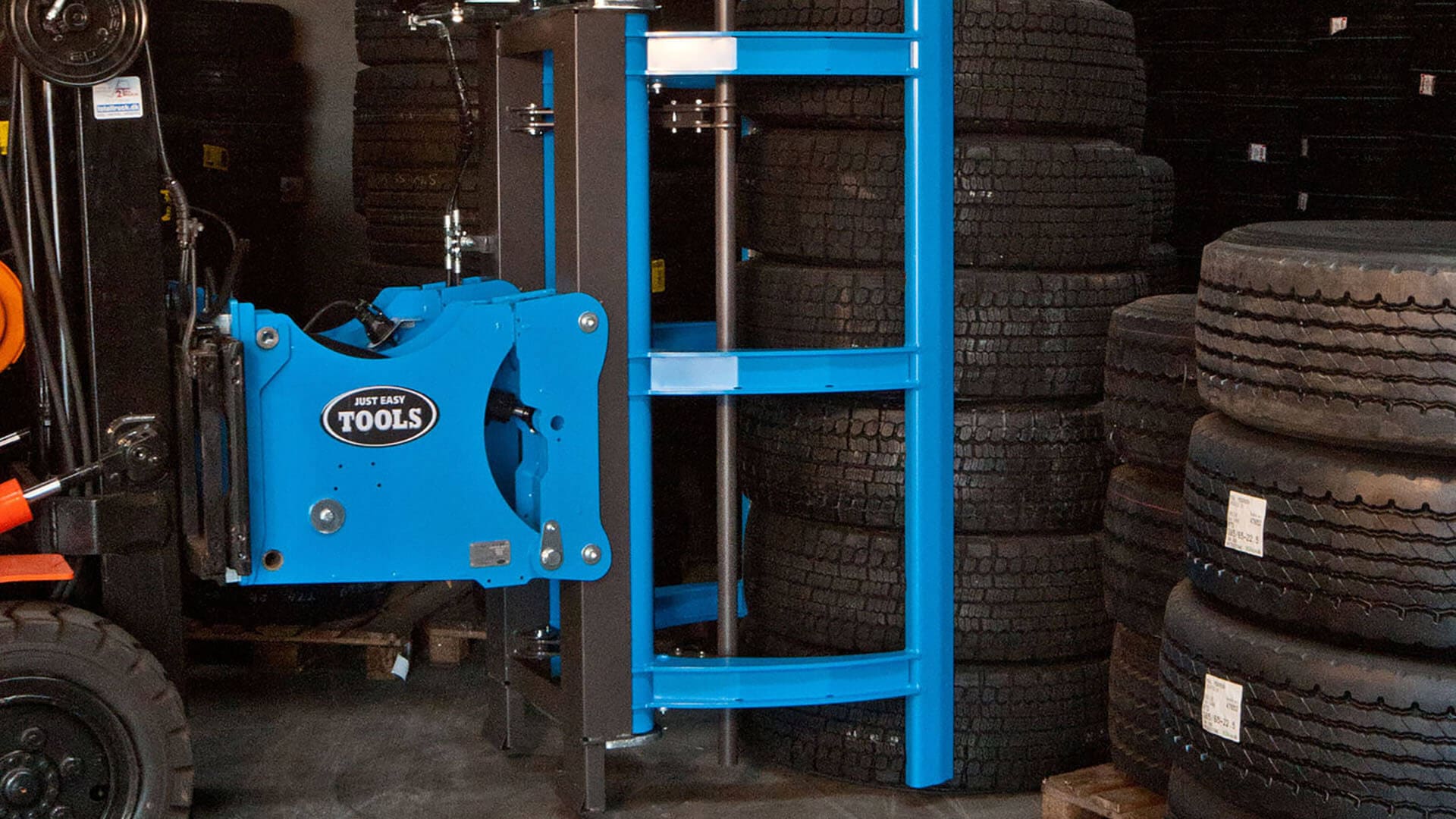

The Easy Stacker 1200 is designed to stack and handle stacks of truck tyres with a firm grip and with movements optimized to operate in tight space in warehouses, production areas, trucks and containers.

Capability

With a gripping range of Ø550-1.200 mm (22-47”), a grip length of 2.100 mm (82”) and a lifting capacity of 750 kg (1.650 lbs) the Easy Stacker 1200 can handle stacks of almost any truck tyre. With the 90° tilt module, rows of tyres can be stacked, and the design enables loading and unloading of containers and of trailers. Without any stressful and physical work.

Say Goodbye to Physical Strain and Hello to Productivity with Easy Stacker 1200!

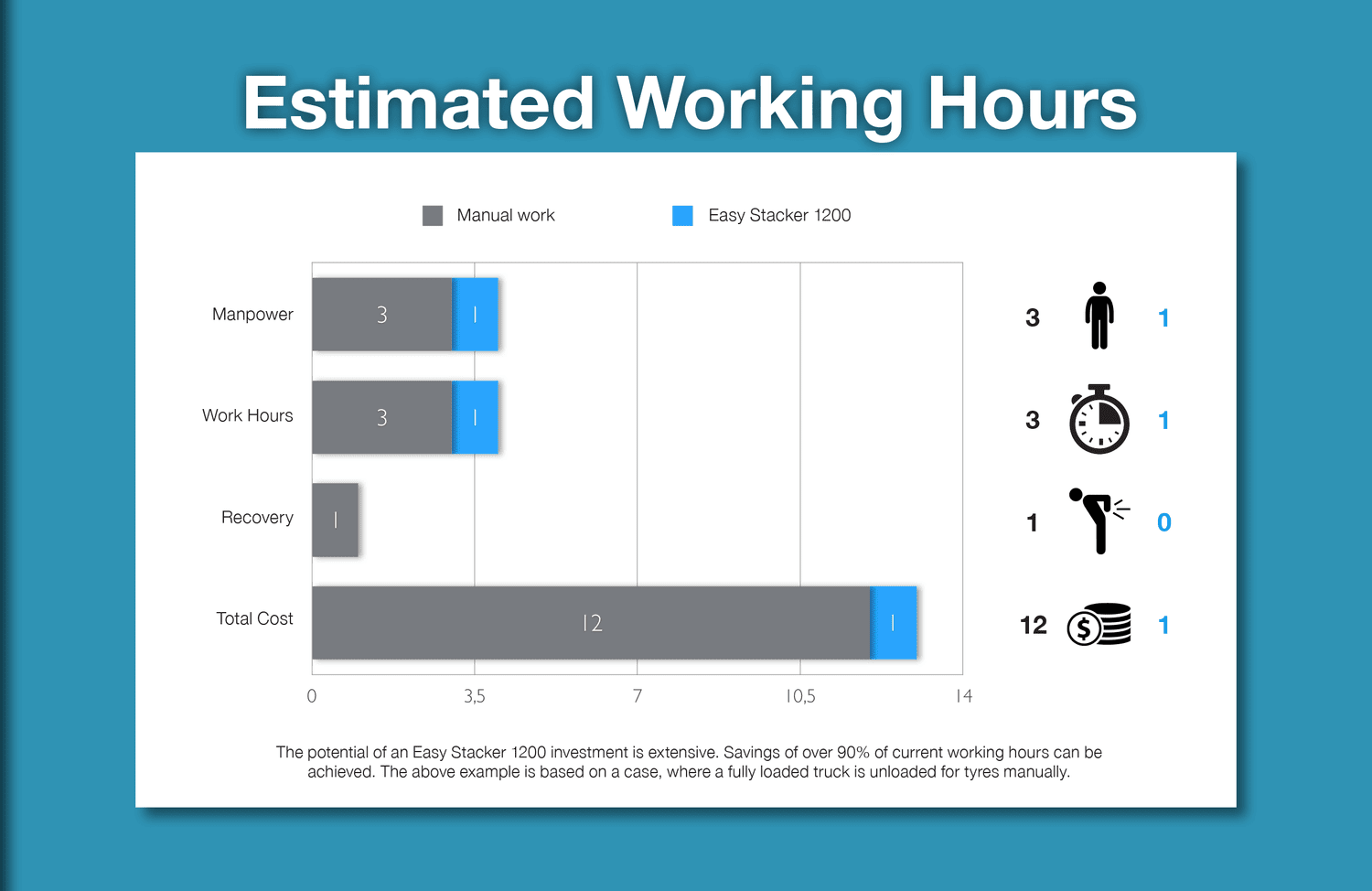

The Easy Stacker 1200 has a proven lifetime of more than 10 years. With an investment of only 10 euro per working day you get all the benefits of improved work safety, minimization of physical strain and increased productivity.

Standard features

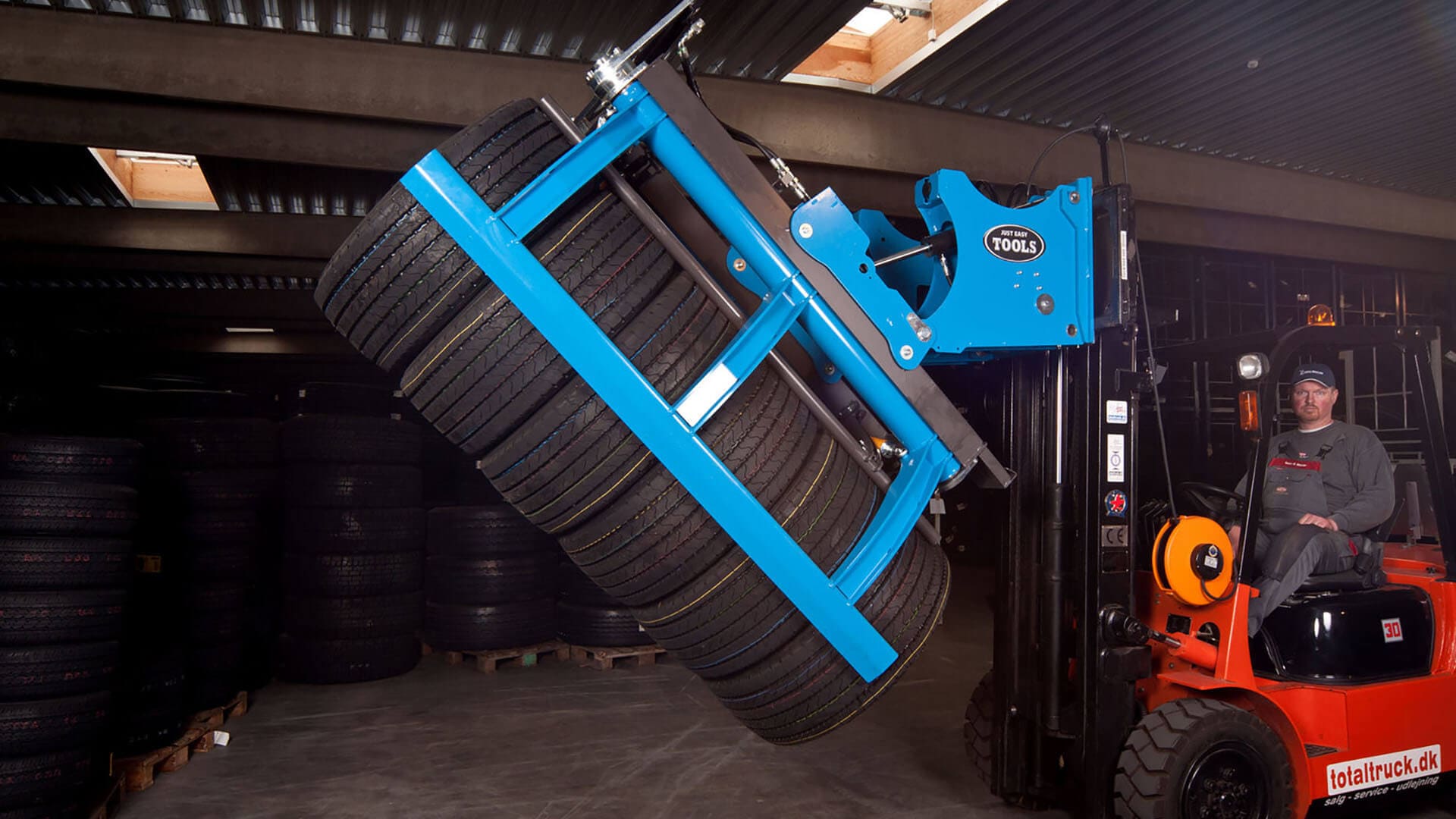

  • 90° tilt, horizontal to vertical
  • Stacking of truck tyres

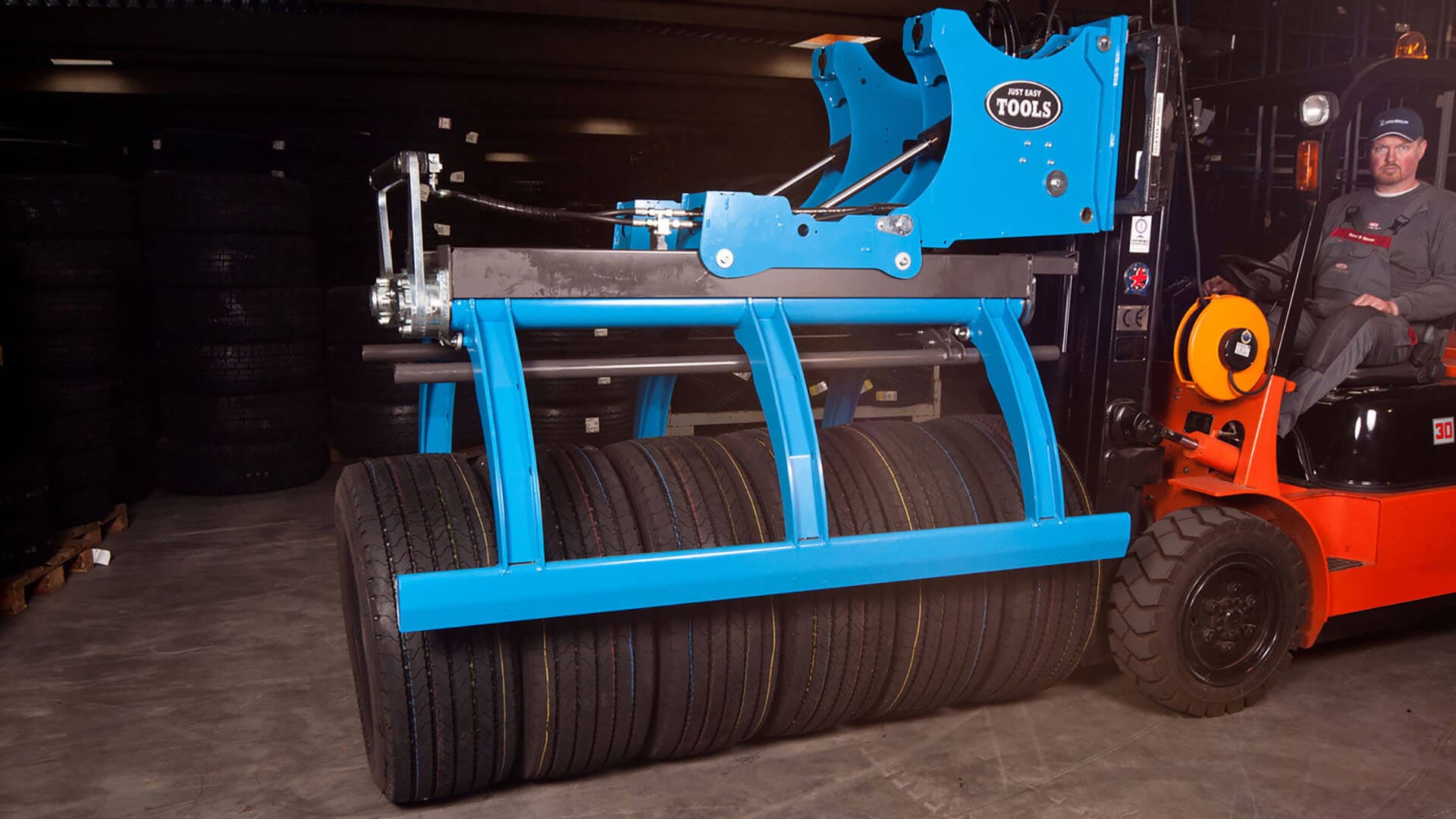

    Roll/place a line of 6-8 truck tyres on the floor. Grip and tilt them up to vertical position.

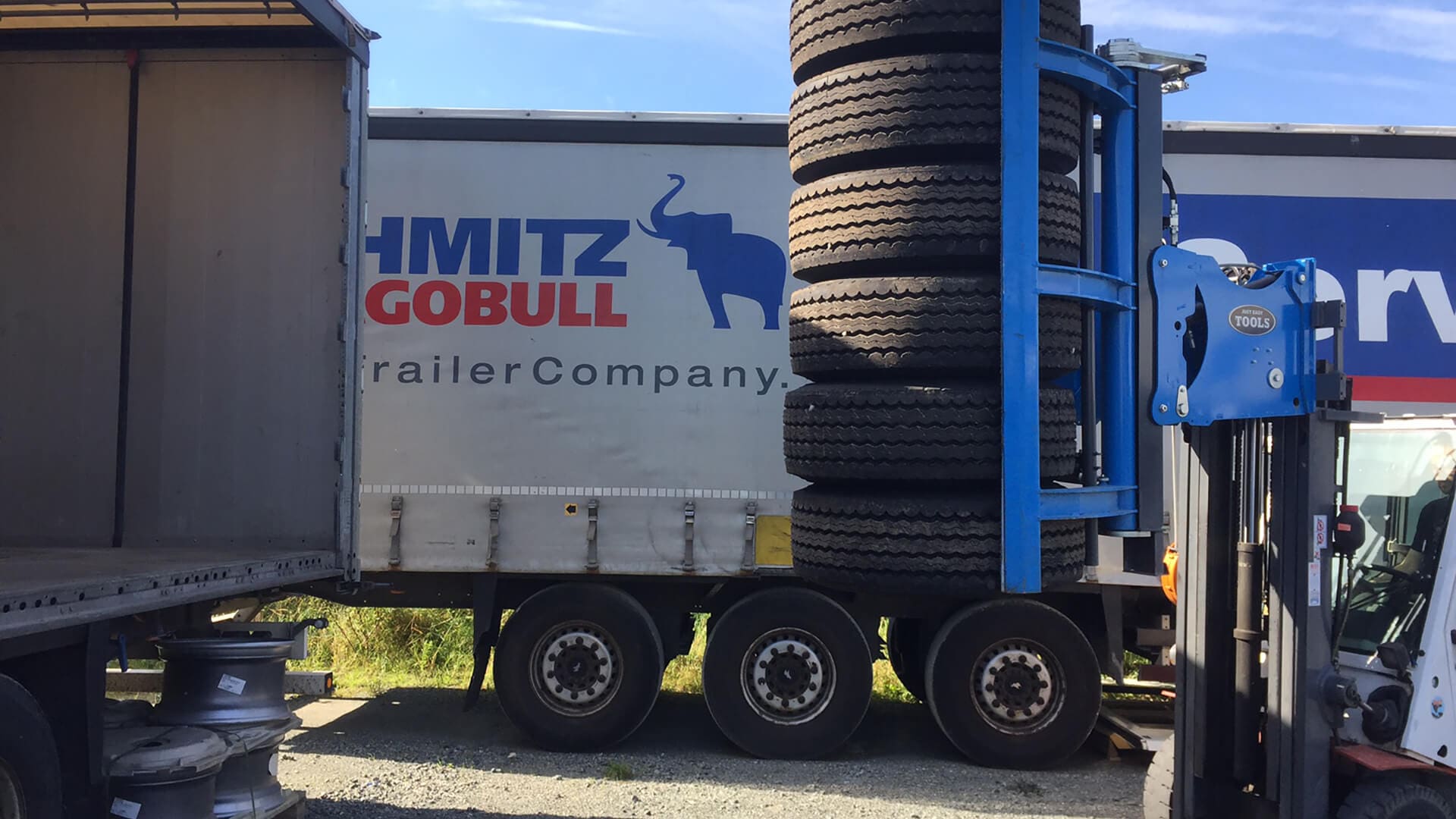

    Place stacks on stacks to use the height of the warehouse and double the capacity without any shelf system and without any need for pallets.
  • Can grip piles of tyres without space around it.
    In order to use the space effectively and to operate in trucks, trailers and containers.

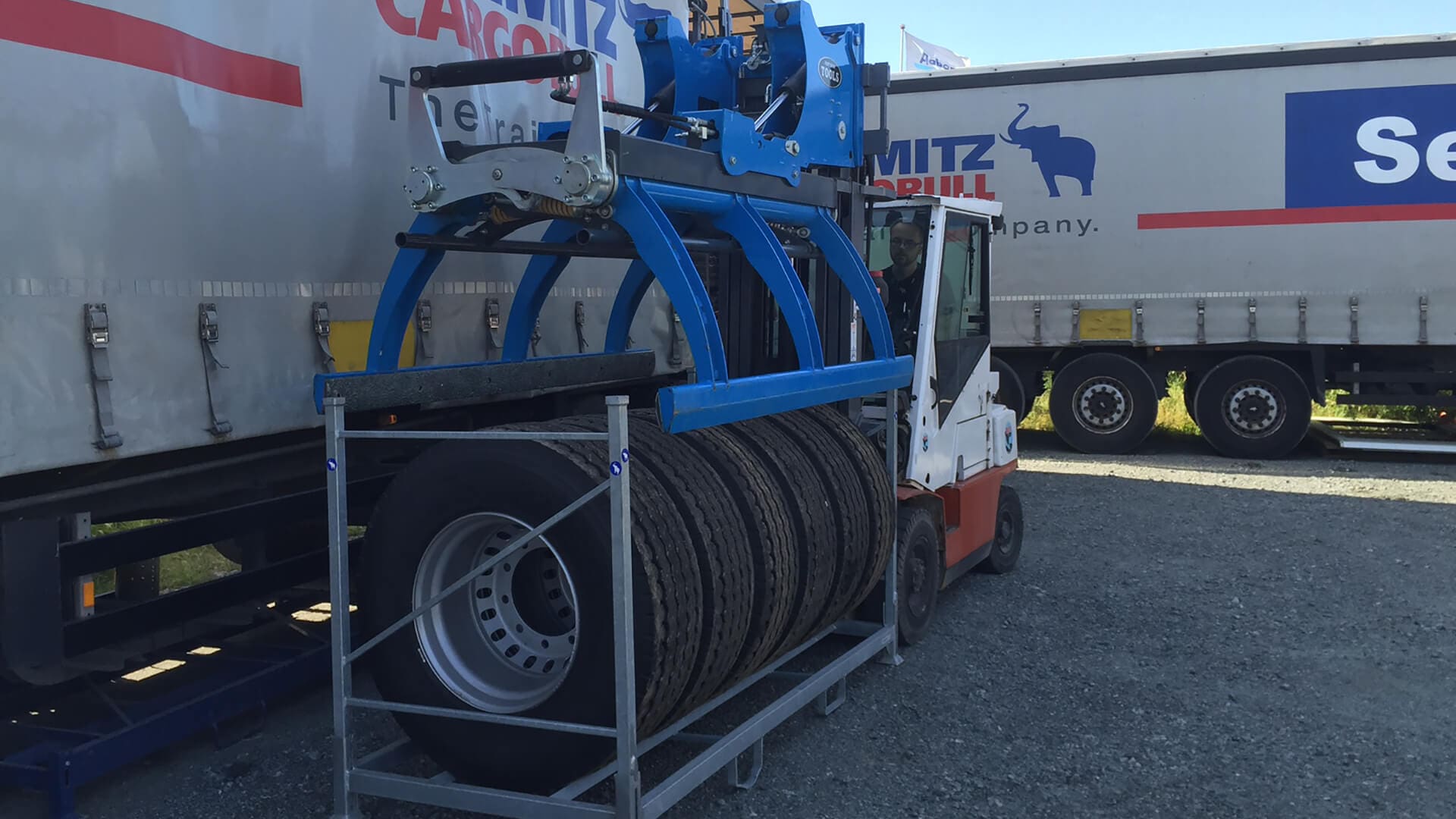

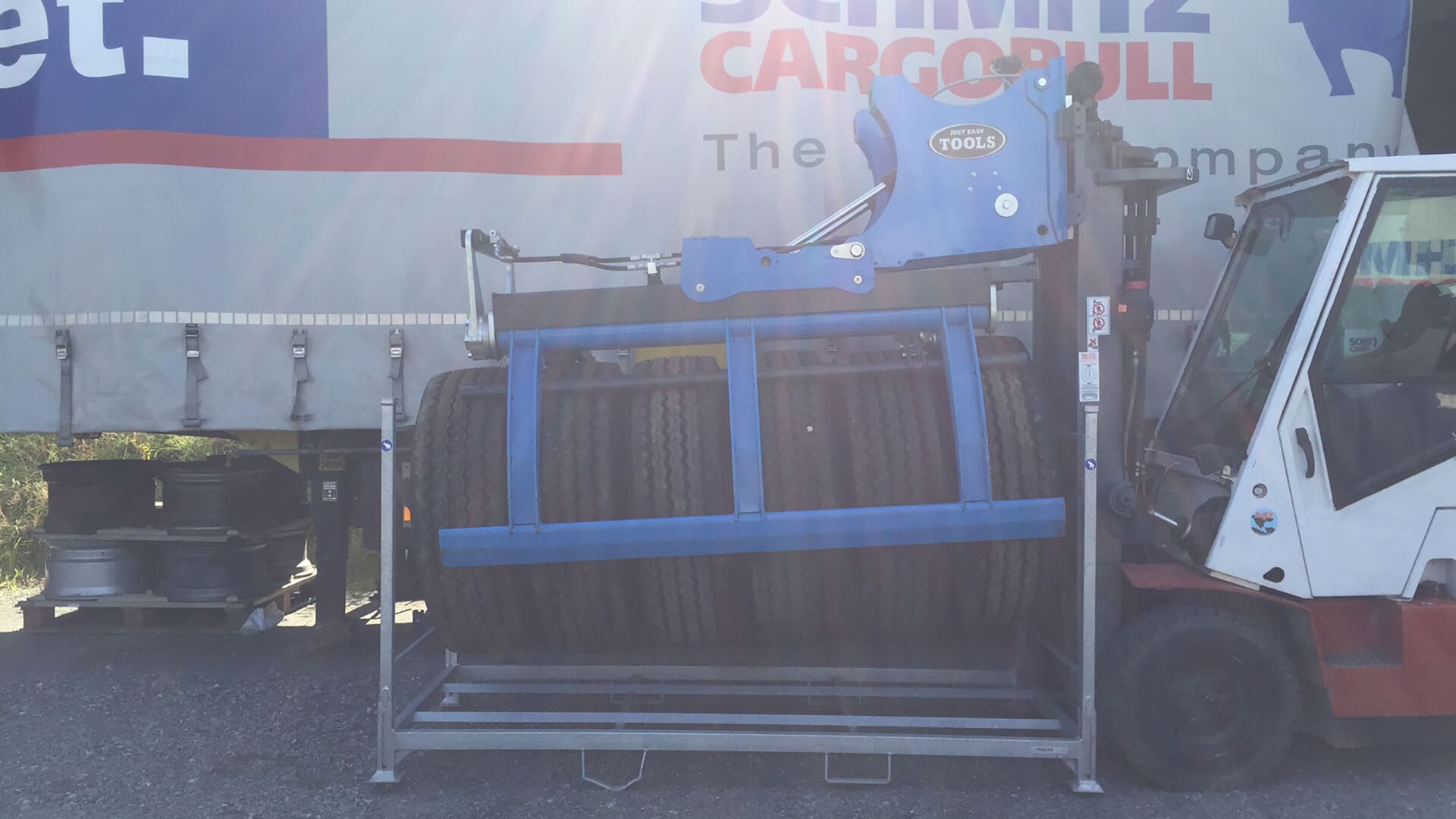

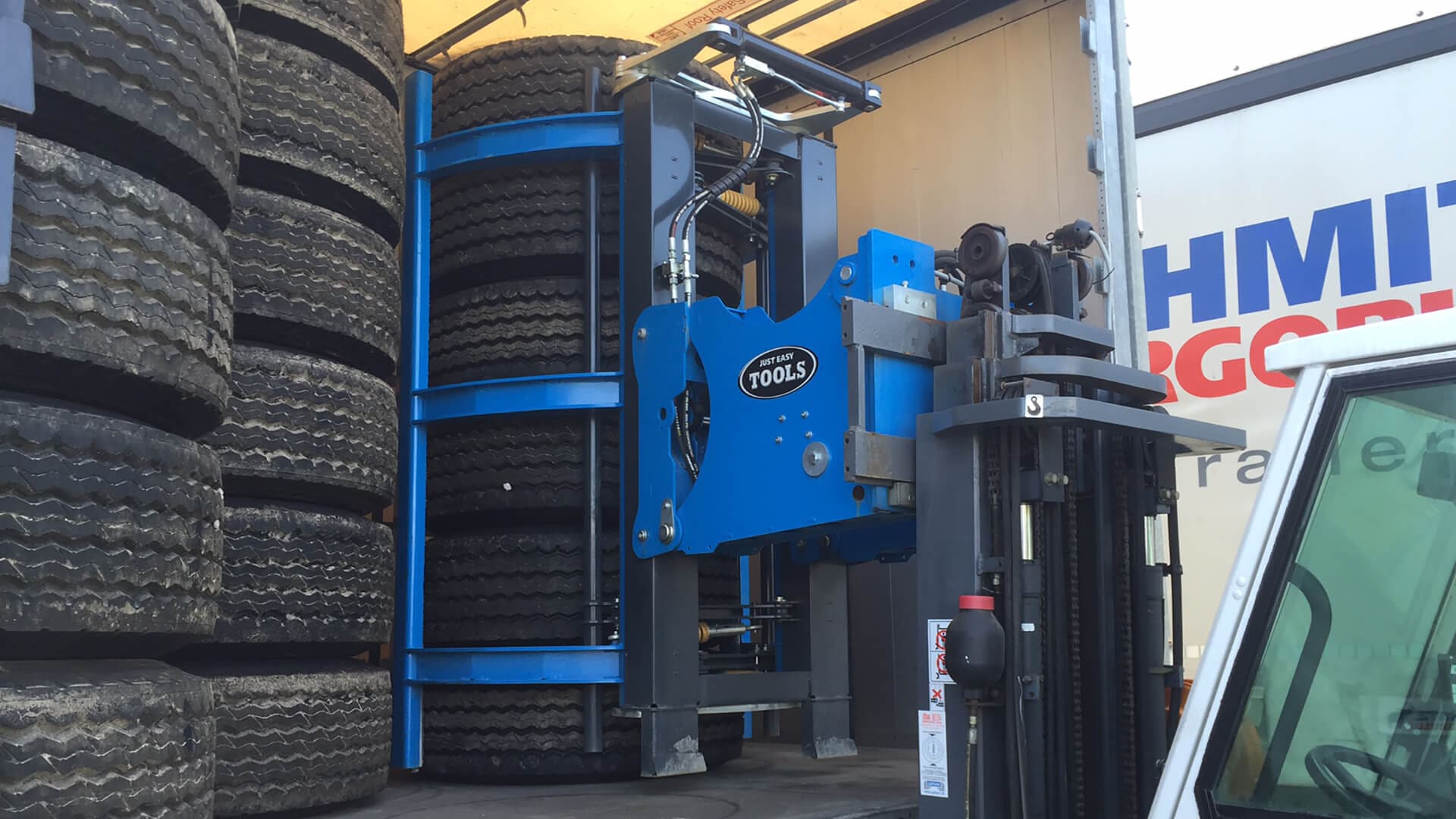

  • Loading and unloading of trailers etc.
    Can be performed from just one side with the reach of the Stacker.
    Can be performed by just one man and in less than one hour. Maybe even including transport to or from the stock. And without any physical and stressful work.

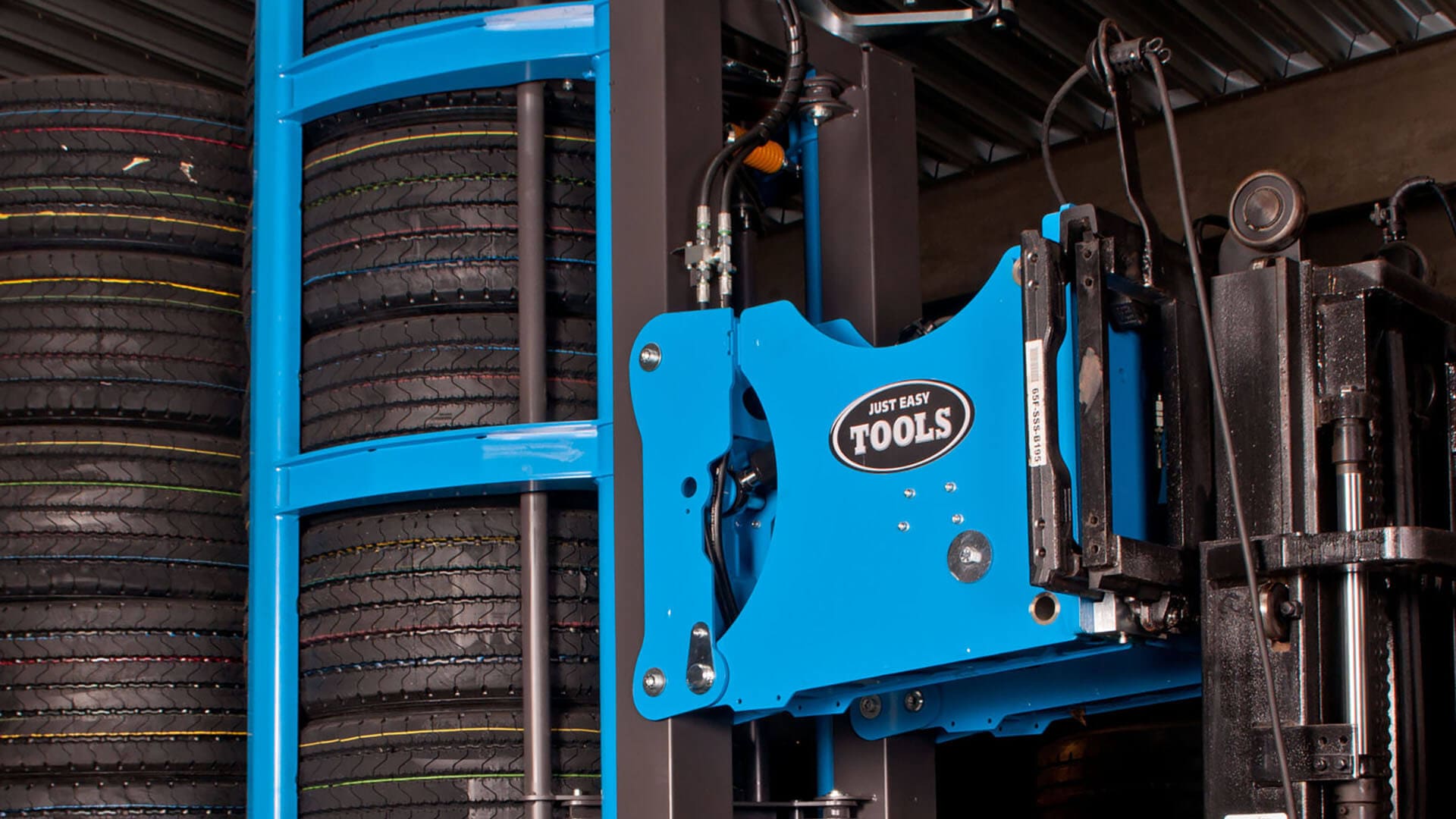

  • Quick Shift Module
    The Quick Shift Module is a standard and integrated part of the Easy Stacker. It is mounted on the forklift, and the Easy Stacker is then hooked on to this module. By using the Quick Shift Module, the Stacker can easily be hooked on and off.

Optional accessories

  • Fork Module
    The Fork Module is designed to be hooked on to the Quick Shift Module, and makes quick shift between Stacker and forklift forks easy.
  • Hydraulic Quick Shift
    The quick shift can be speeded up to less than half a minute by using a hydraulic multi connection. Instead of changing two hydraulic hoses by screw couplings, the hydraulic can be changed by one handle in few seconds.
  • Handle inflated and worn out tyres
    Wedges can be built-in behind the lower end of the stone coated grip to ensure a firm grip of the bottom tyres.

Technical specifications

  • Lifting capacity: 750 kg (1.650 lbs)
  • Tyre diameter: 550 – 1.200 mm (22 – 47”)
  • Grip length: 2.100 mm (82”)
  • Lifting height: Forklift specific
  • Tilt, horizontal to vertical: 90°
  • Net weight: 630 kg (1.386 lbs)

Technical Requirements

  • Attachment: ISO/FEM/ITA Class 2 or 3
  • Electrical supply: 12/24 V / min 10A
  • Hydraulic: 1 double acting hydraulic valve
  • Pressure min-max: 150 – 250 bar (2.175 – 3.626 psi)
  • Return pressure: max. 10 bar (145 psi)
  • Flow: max. 50 l/min. (13 gal/min.)

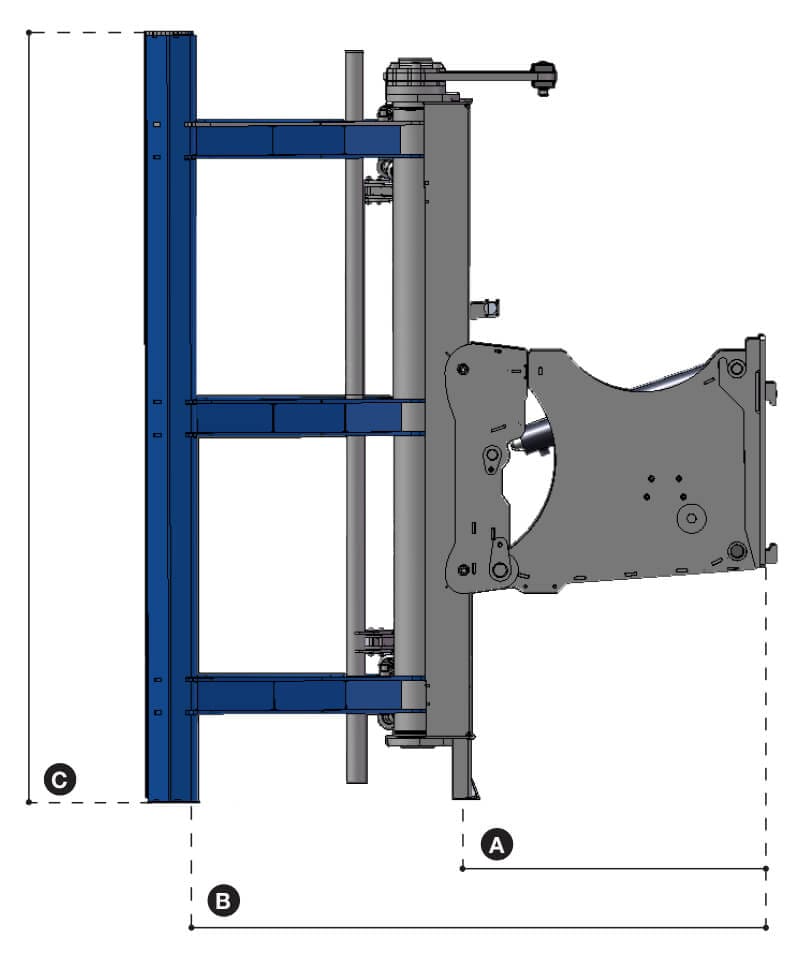

Explanatory description

(A) CoG Machine: 825 mm (33”)
(B) CoG Load: 1.580 mm (62”)
(C) Height: 2.100 mm (83”)
