EASY GRIPPER CRANE MODULE D
Mobile service of OTR/EM and AGRO tyres
The Easy Gripper product range is designed to help tyre professionals in a multitude of conditions and situations.

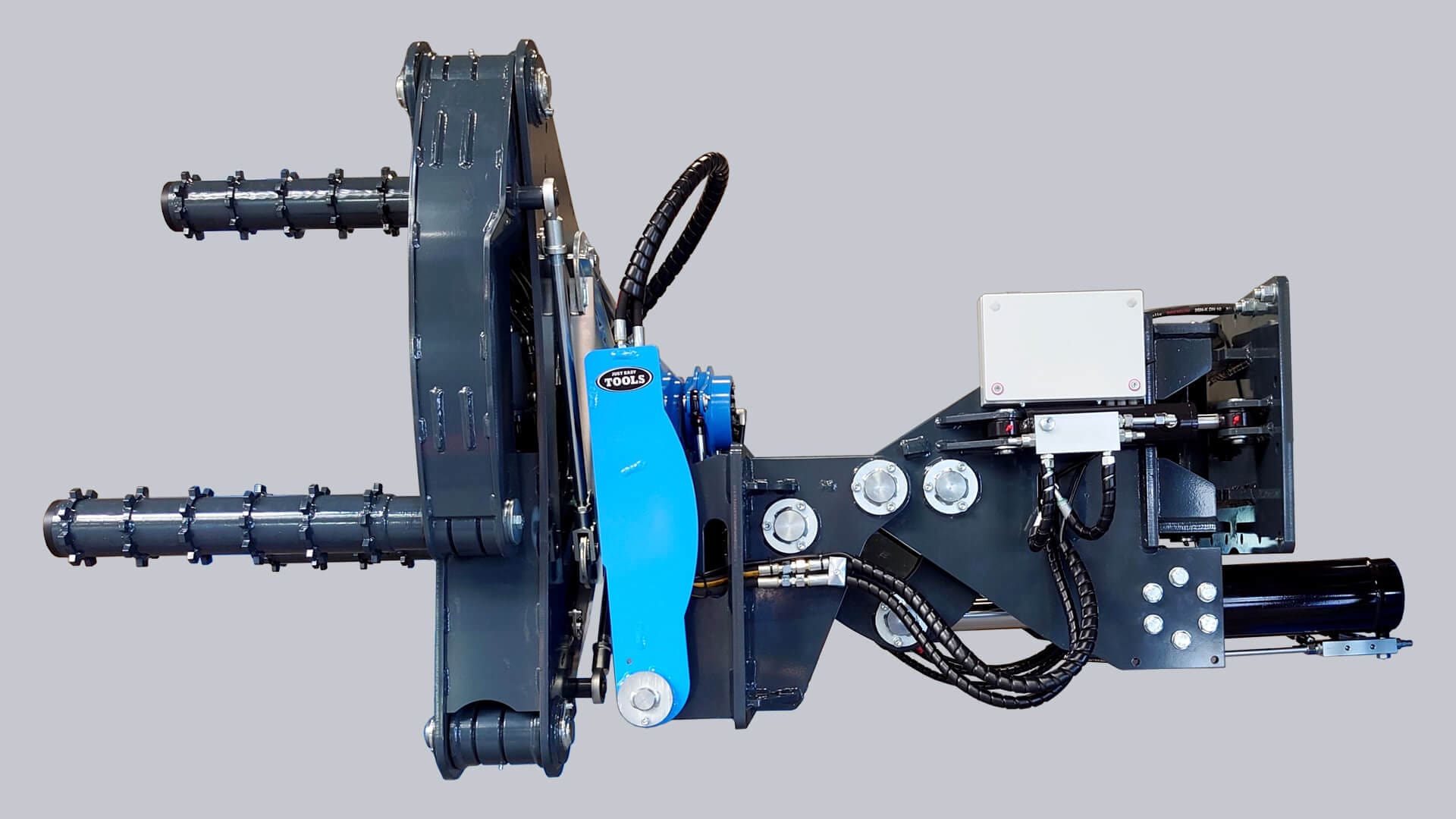

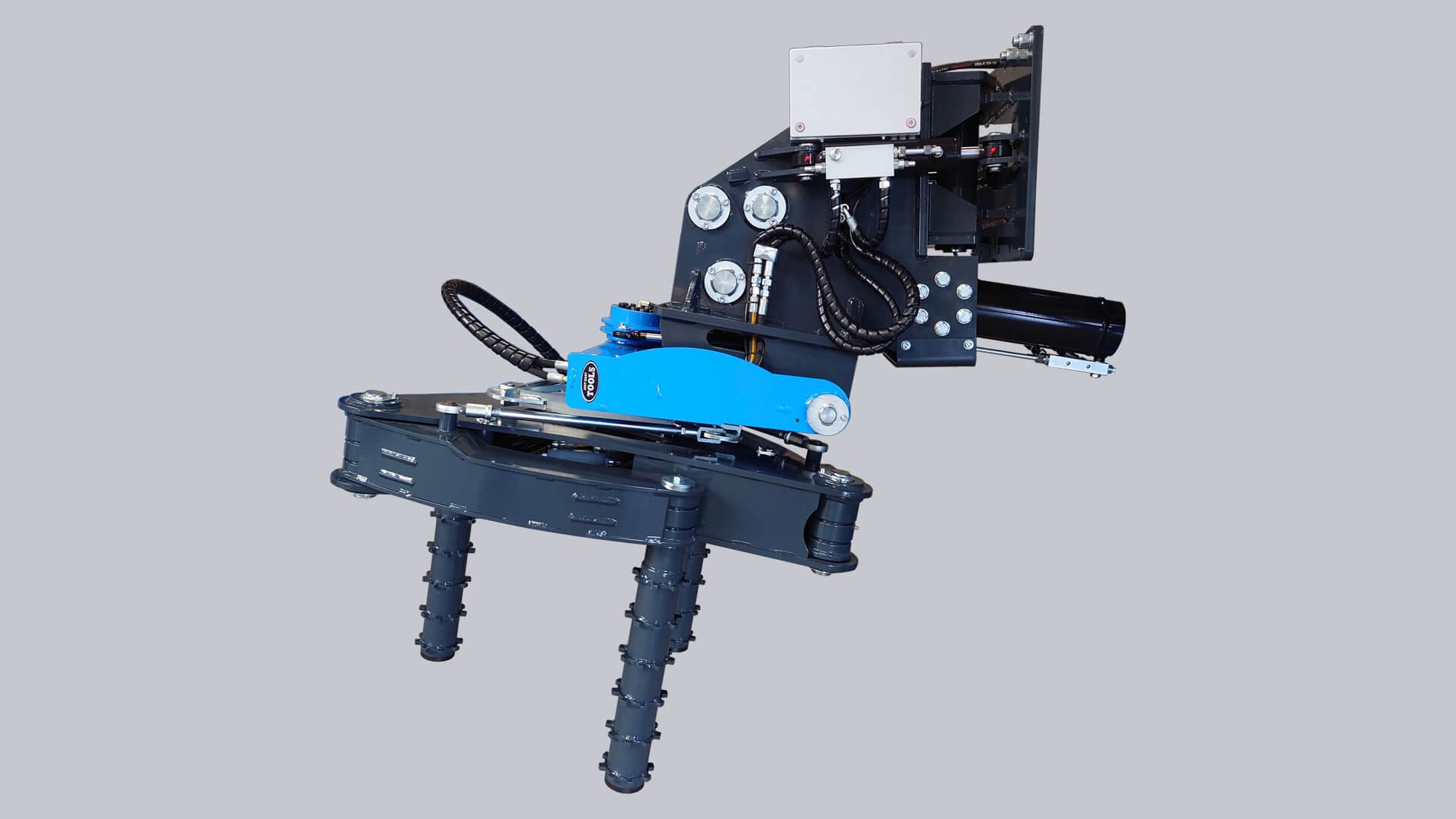

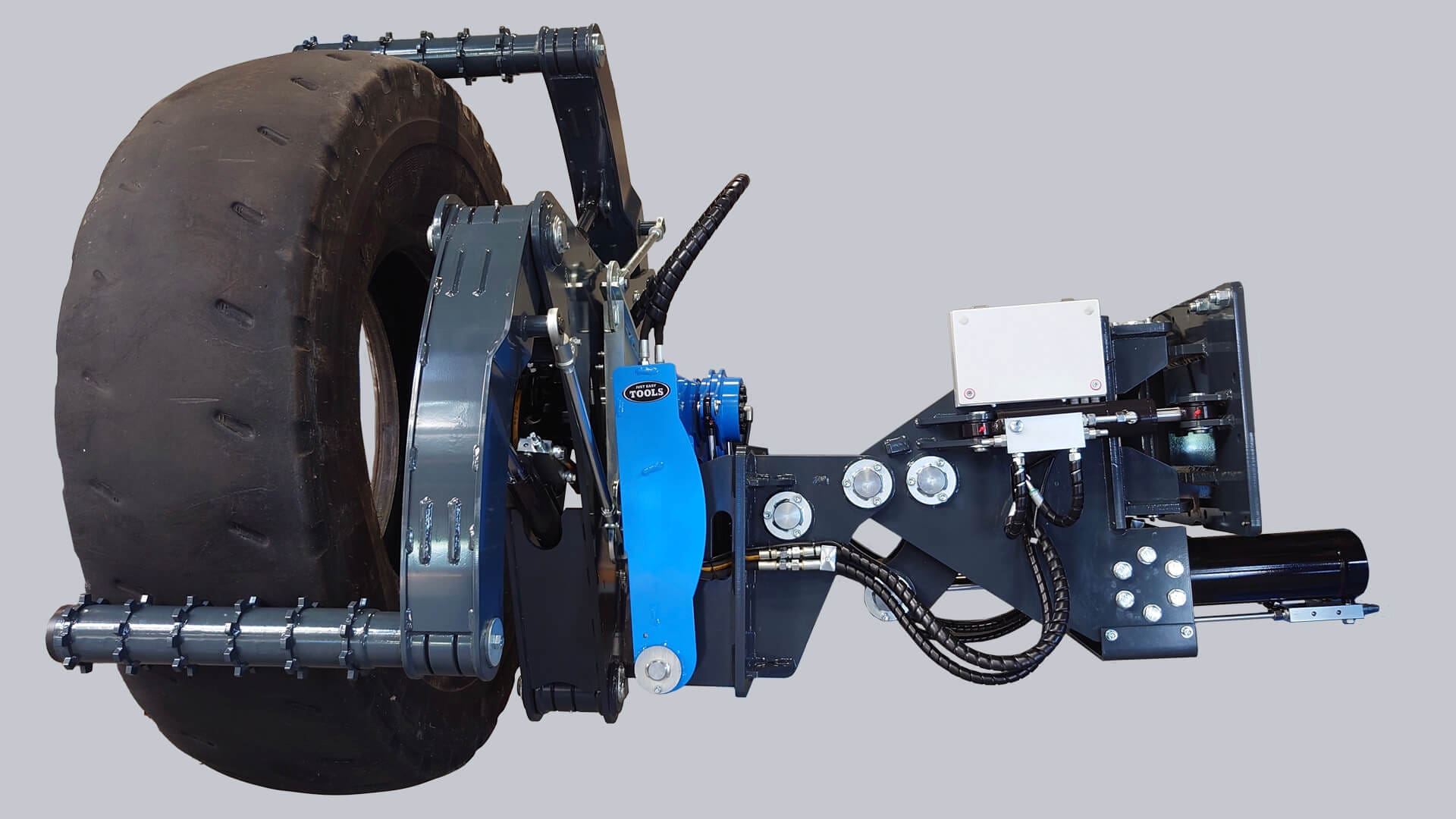

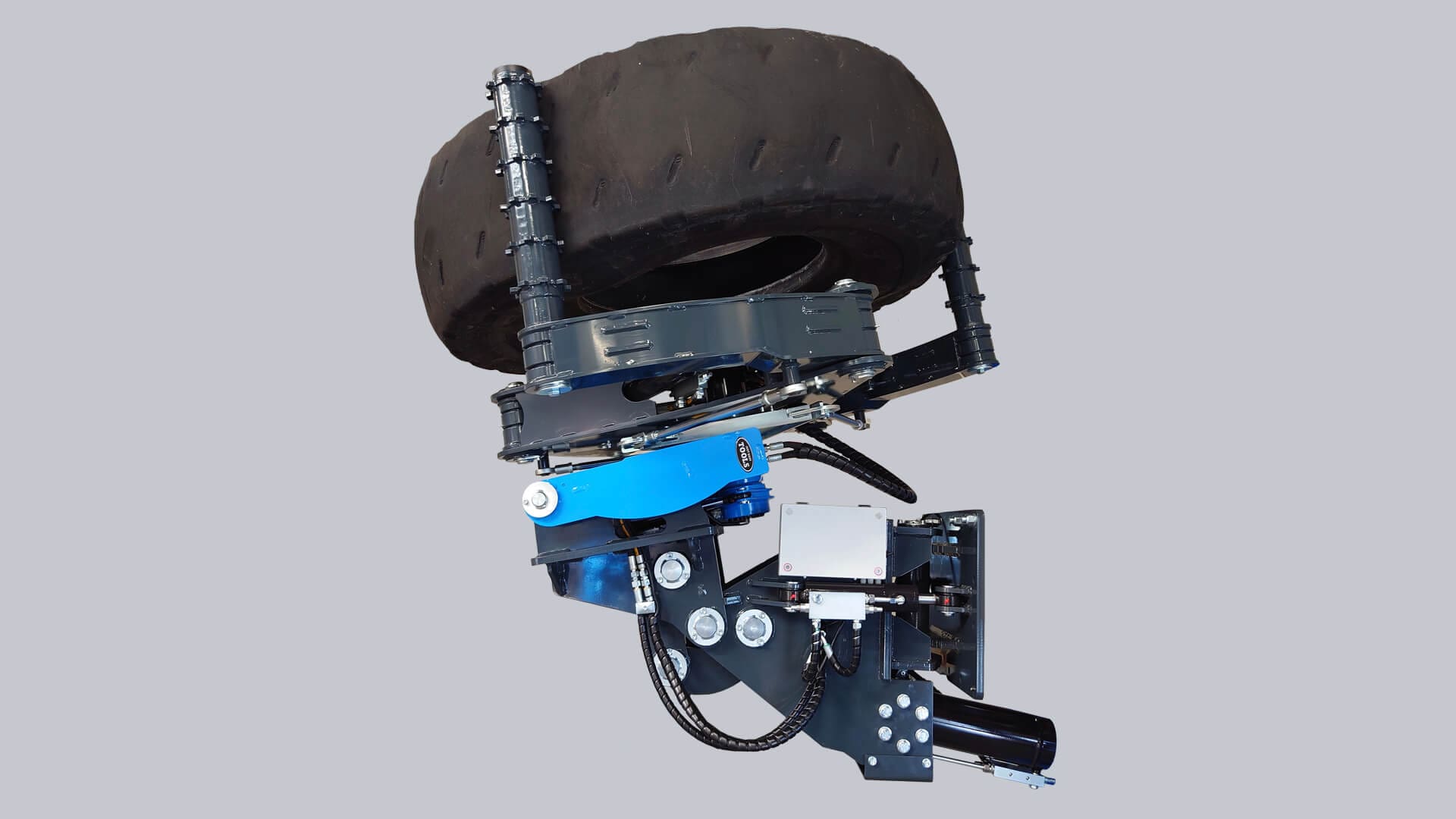

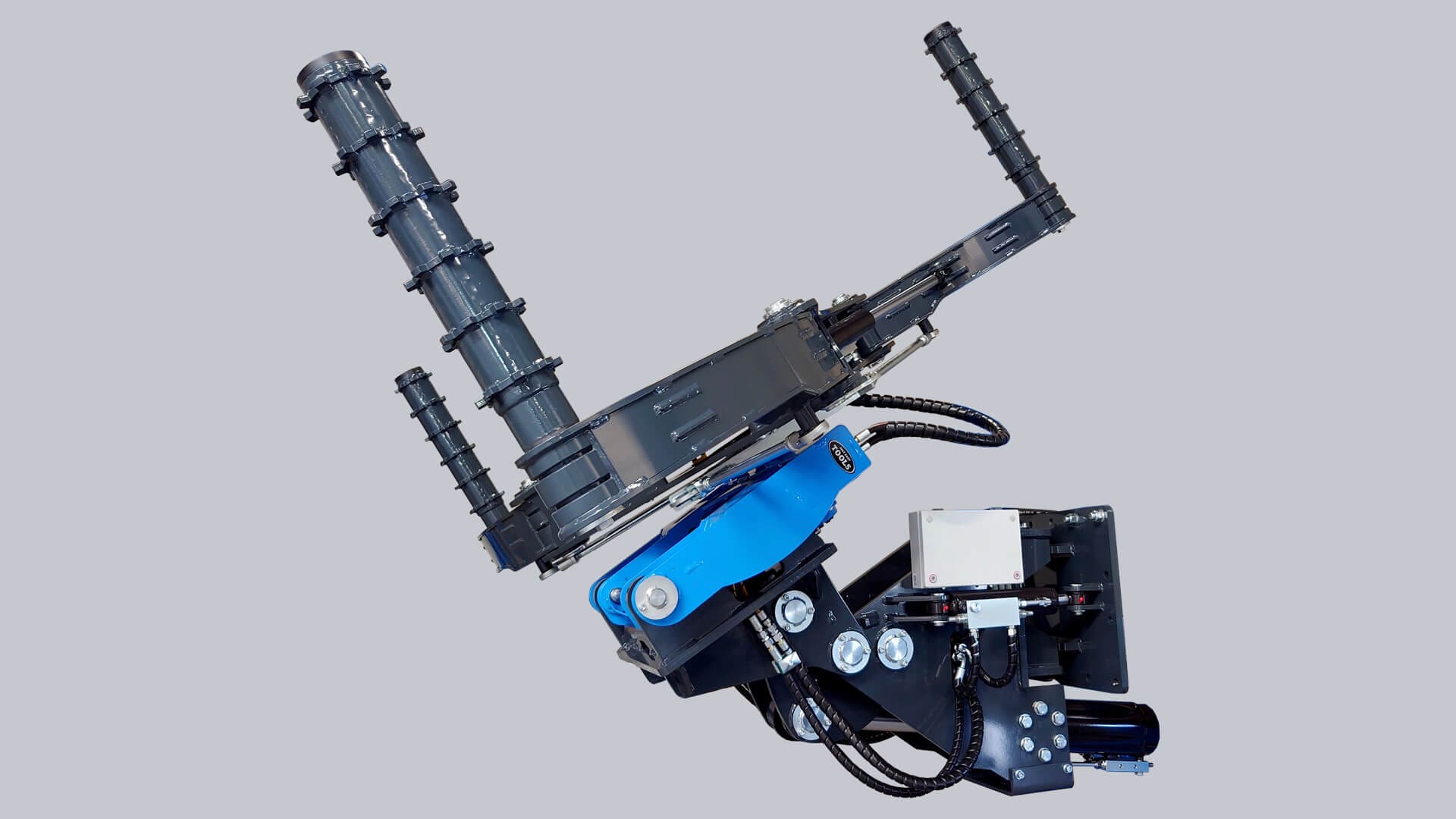

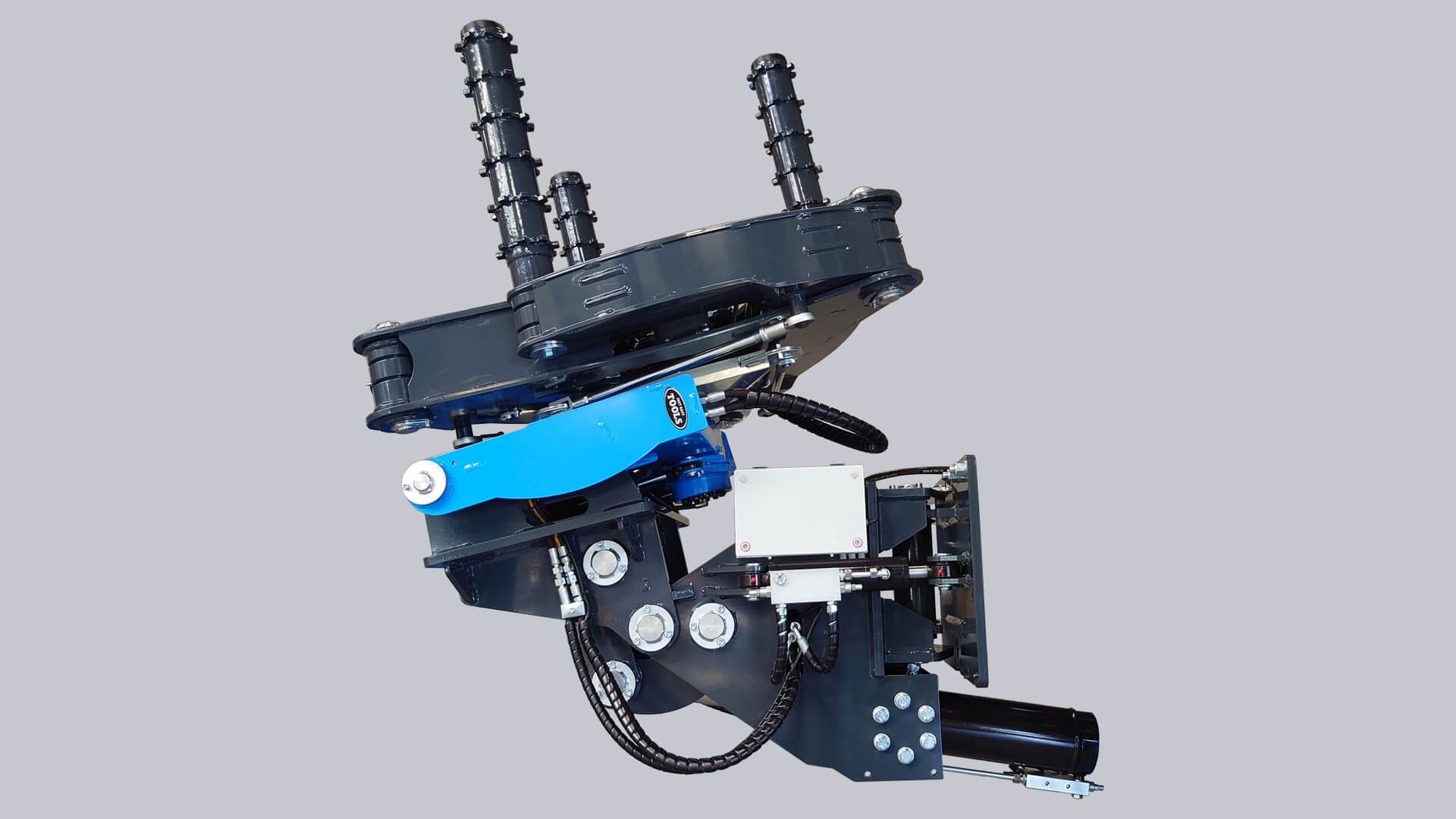

The Easy Gripper Crane Module D, installed on a truck crane, provides optimal flexibility for drivers, allowing them to transport and mount large OTR or AGRO tyres and wheels – even single-handedly.
The Easy Gripper Crane Module D enhances both speed and safety in tyre handling, with its unique 3-point grip providing maximum control and stability. The combination of the precise rotation of the Easy Gripper, together with the tilt and slewing functions of the Crane Module D, significantly reduces accident risks and prevents damage to tyres, rims, and equipment.
Capability
Configured with an Easy Gripper 2160:
With a gripping range of Ø700 – 2.160 mm (28 – 85”) and a lifting capacity of 1 ton (2.200 lbs), the Easy Gripper 2160 is developed to handle AGRO and light OTR tyres.
Configured with an Easy Gripper 2400-2T:
With a gripping range of Ø850 – 2.400 mm (34 – 94”) and a lifting capacity of 2 ton (4.400 lbs), the Easy Gripper 2400-2T can handle tyres up to 37.25R35. When handling full wheel assemblies as inside duals, the Gripper handles up to 24.00R35.
Standard features
- Handles both the Easy Gripper 2160 and Easy Gripper 2400-2T
- Unique and safe 3-point grip
- Prevents accidents.
- Prevents deformation of tyres.
- Prevents damages to tyres, rims, and equipment.
- Precise rotation +/-25°
- Horizontal/vertical tilt +/-80°
- Horizontal Slewing +/-10°
- Control system designed to be integrated with existing crane control system
Optional accessories

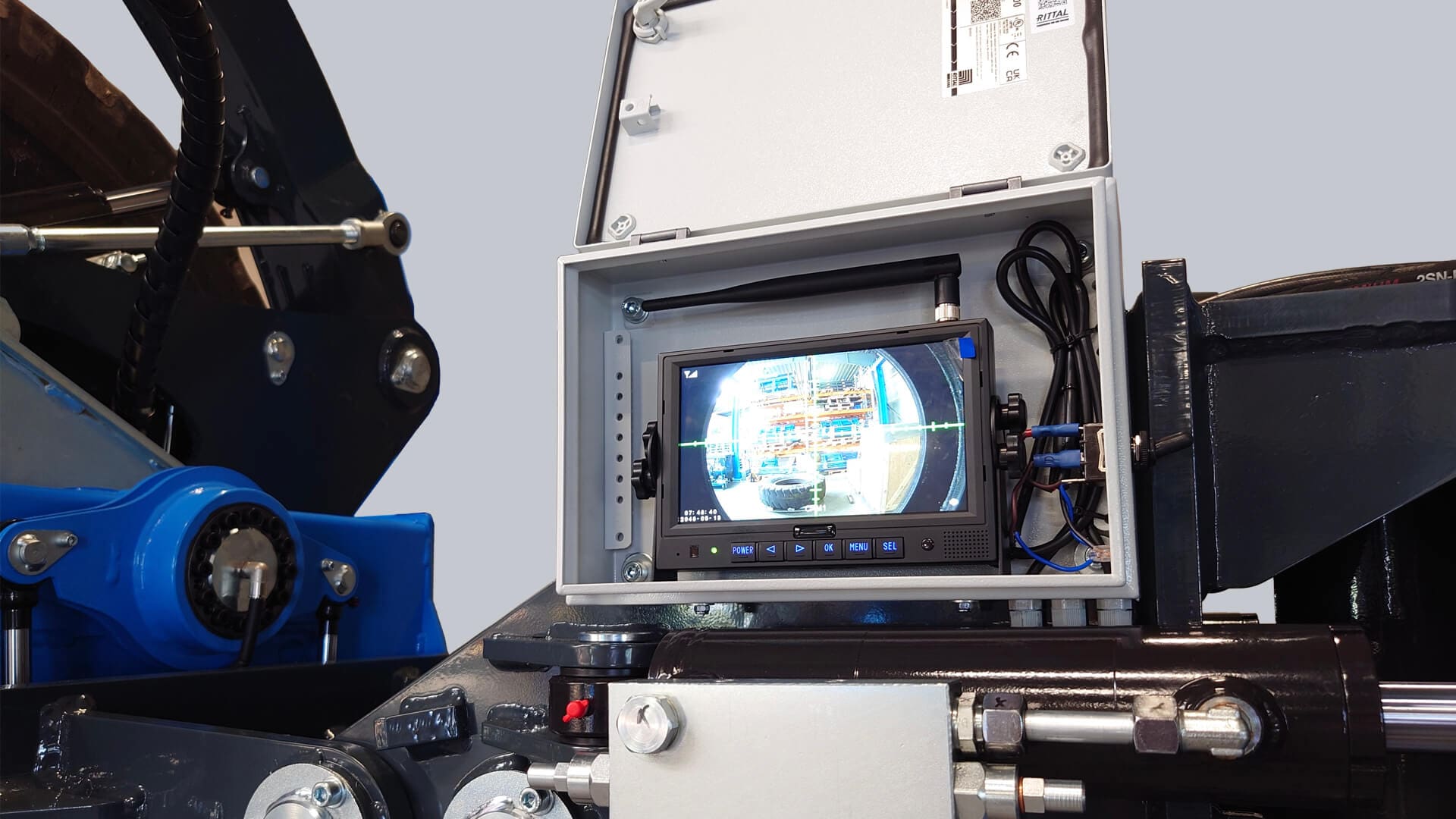

- Camera system for optimal view
With automatic IR function in insufficient lighting conditions. - LED working light (2400-2T only)
- Easy shift of gripping pipes for various purposes
Flat top arm for limited tyre clearance.
Telescopic pipes for long reach, to provide room for the tyre fitters and for dual tyre handling. - Tools for safe handling of side rings and bead seat bands
Special designed Ring Handling Tools for handling multi-piece rim wheels. With the Ring Handling Tools, the tyre technicians can grip, hold, press, or place tyres, rims, side rings and bead seat bands as needed – a major improvement of safety and efficiency! - Customization on request
Technical specifications
Easy Gripper 2160:
Gripping diameter: 700 – 2.160 mm (28 – 85”)
Standard pipes: Ø89 x 600 mm (3.5 x 24”)
Lifting capacity: 1.000 kg (2.200 lbs)
Weight: 1.090 kg (2.403 lbs)
Easy Gripper 2400-2T:
Gripping diameter: 850 – 2.400 mm (34 – 94”)
Standard pipes: Ø115 x 650 mm (4.5 x 26”)
Lifting capacity: 2.000 kg (4.400 lbs)
Weight: 1.295 kg (2.855 lbs)
Technical Requirements:
Insert for mounting: Crane specific
Lifting capacity: Individual calculation
Electrical supply: 24 V
Hydraulic flow max: 50 L/min (13.2 gal)
Hydraulic max. presure: 180bar
One hydraulic circuit plus an electrical cable available at the end of the crane boom with 5 individual wires:
One wire with constant 24 Vdc.
Three wires for activating functions valves (slewing, rotating, and gripping)
One common ground wire.
