EASY GRIPPER 2800-3.2T

Easy Gripper 2800-3.2T

Easy Gripper

The Easy Gripper product range is designed to help professional tyre technicians in a multitude of conditions and situations. Implementing The Easy Gripper makes tyre handling faster and safer, while preventing damages to tyres, rims and equipment.

Capability

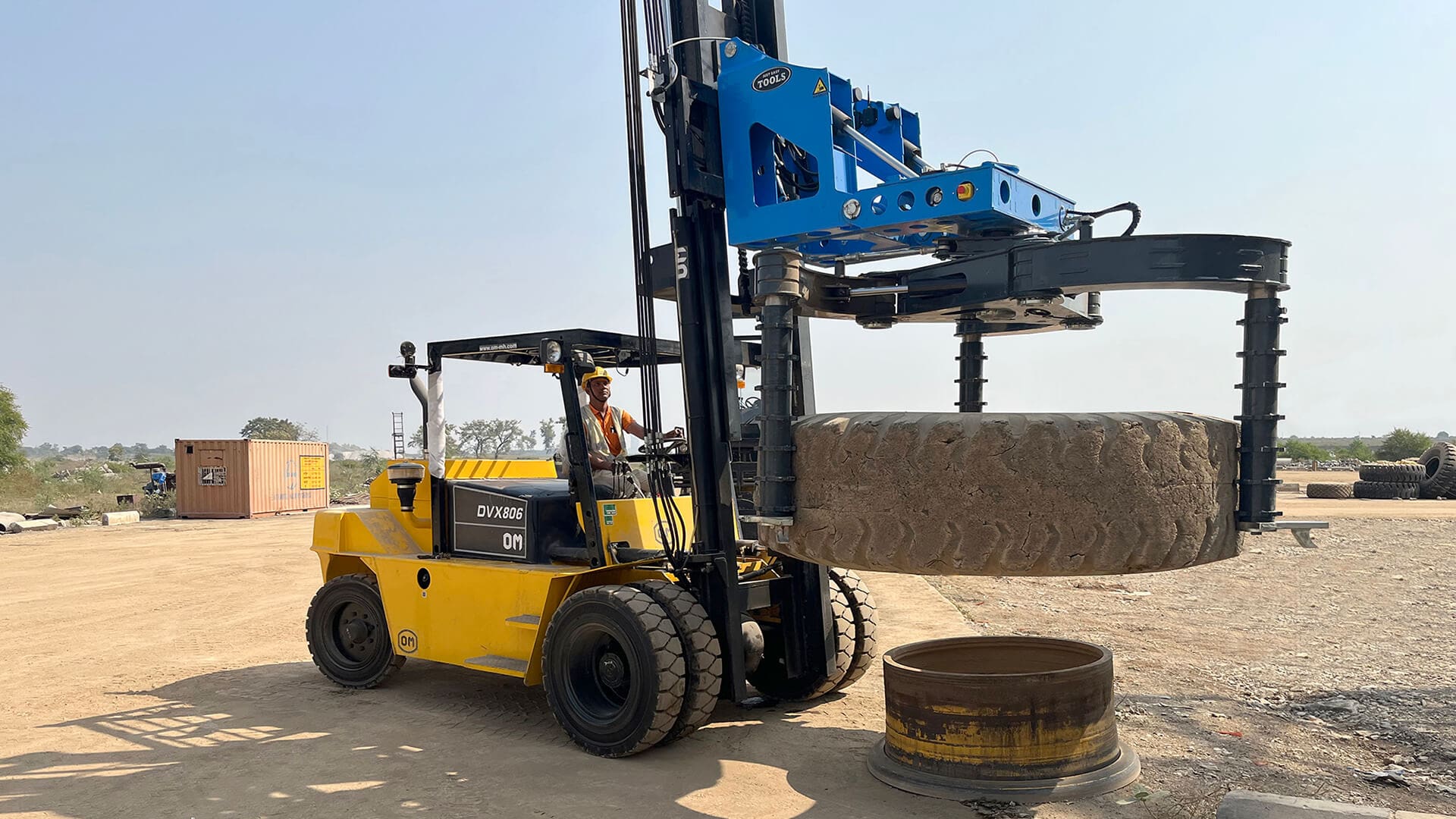

With a gripping range of Ø1.150 – 2.800 mm (45 – 110”) and a lifting capacity of 3.2 ton (7.000 lbs) at a CoG of 650 mm (25,6”), the Easy Gripper 2800-3.2T handles large OTR/EM tyres and wheels up to 27.00R49.

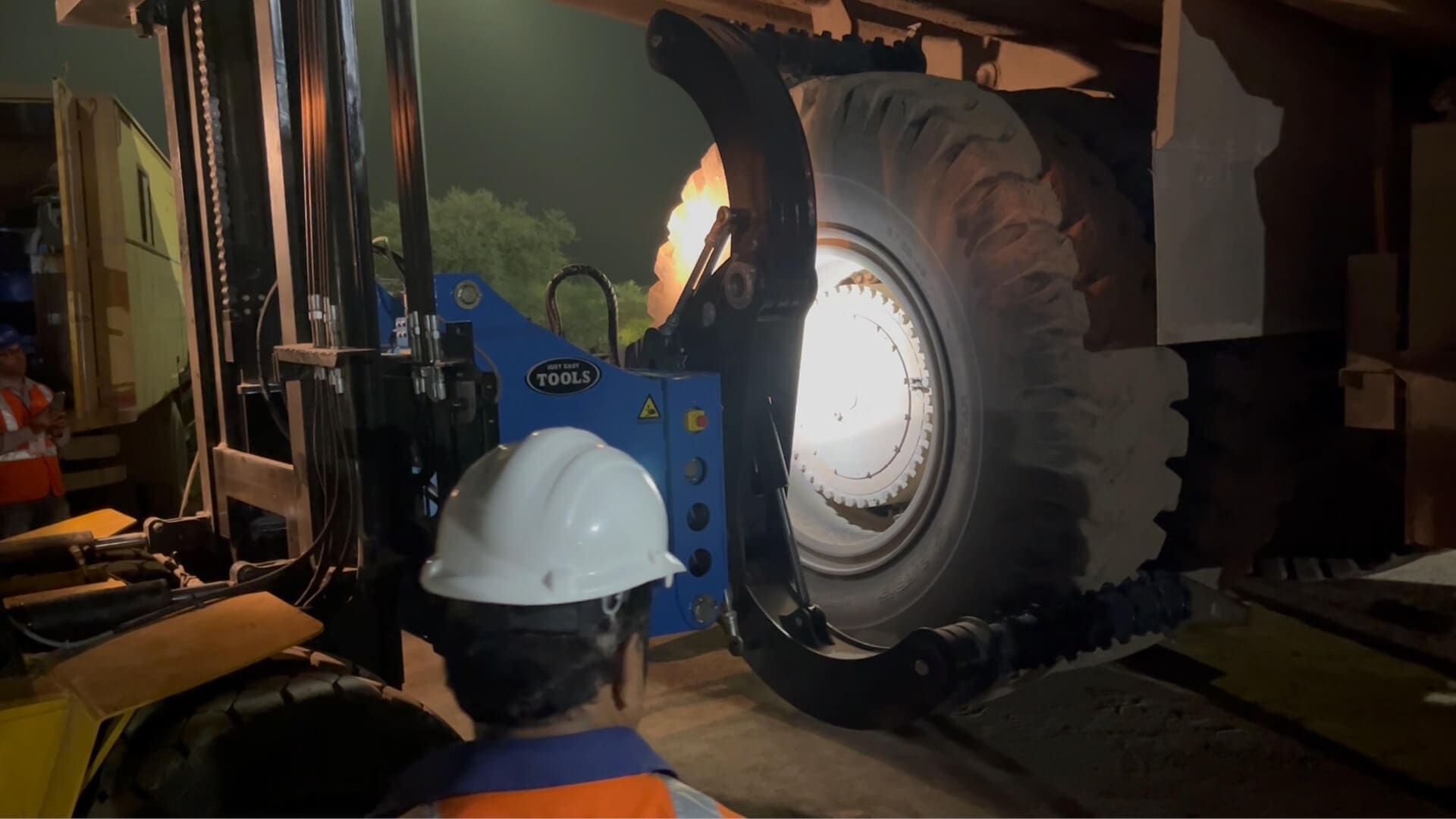

Use on Forklifts, Front loaders, Telehandlers and Truck cranes

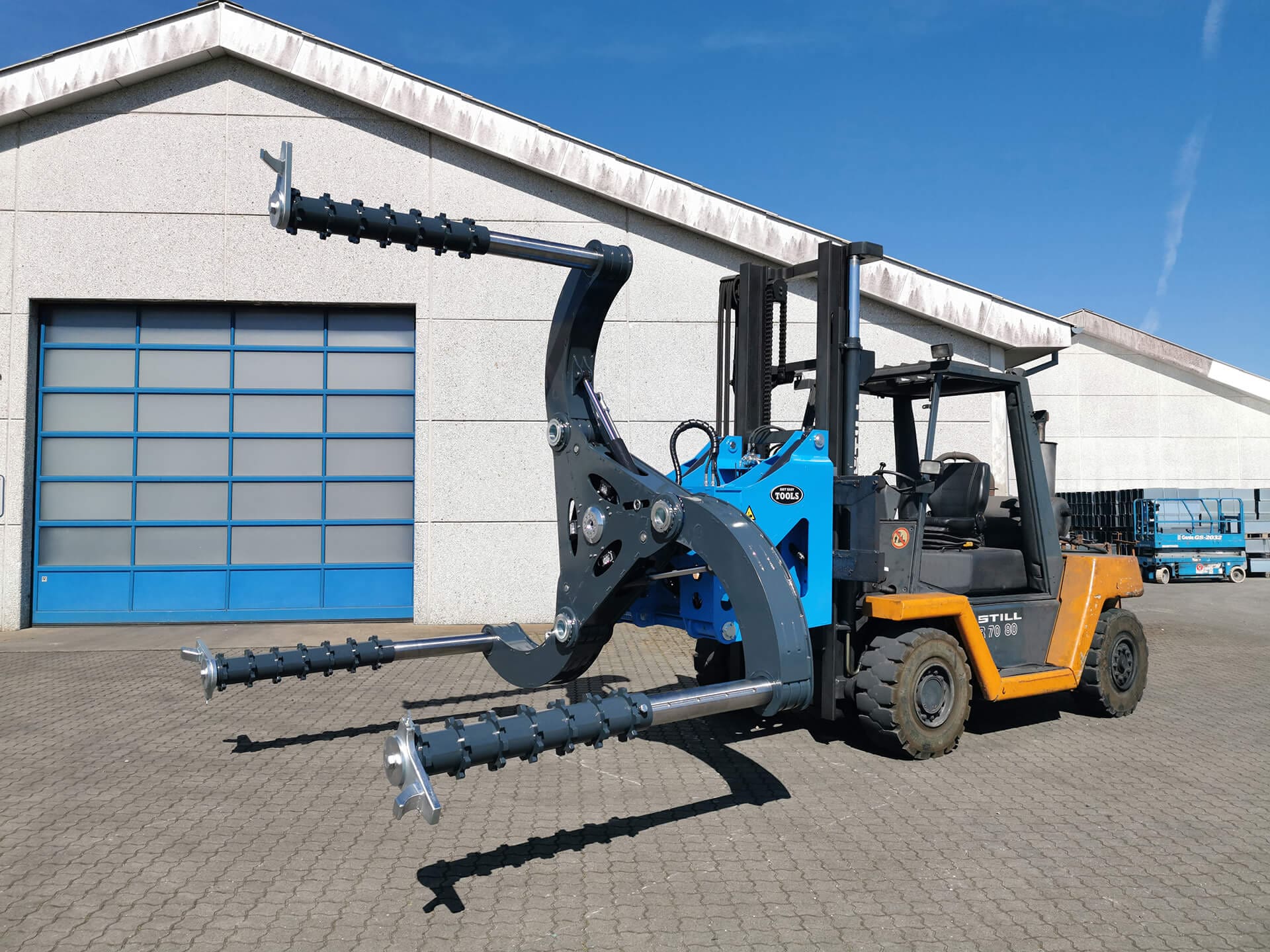

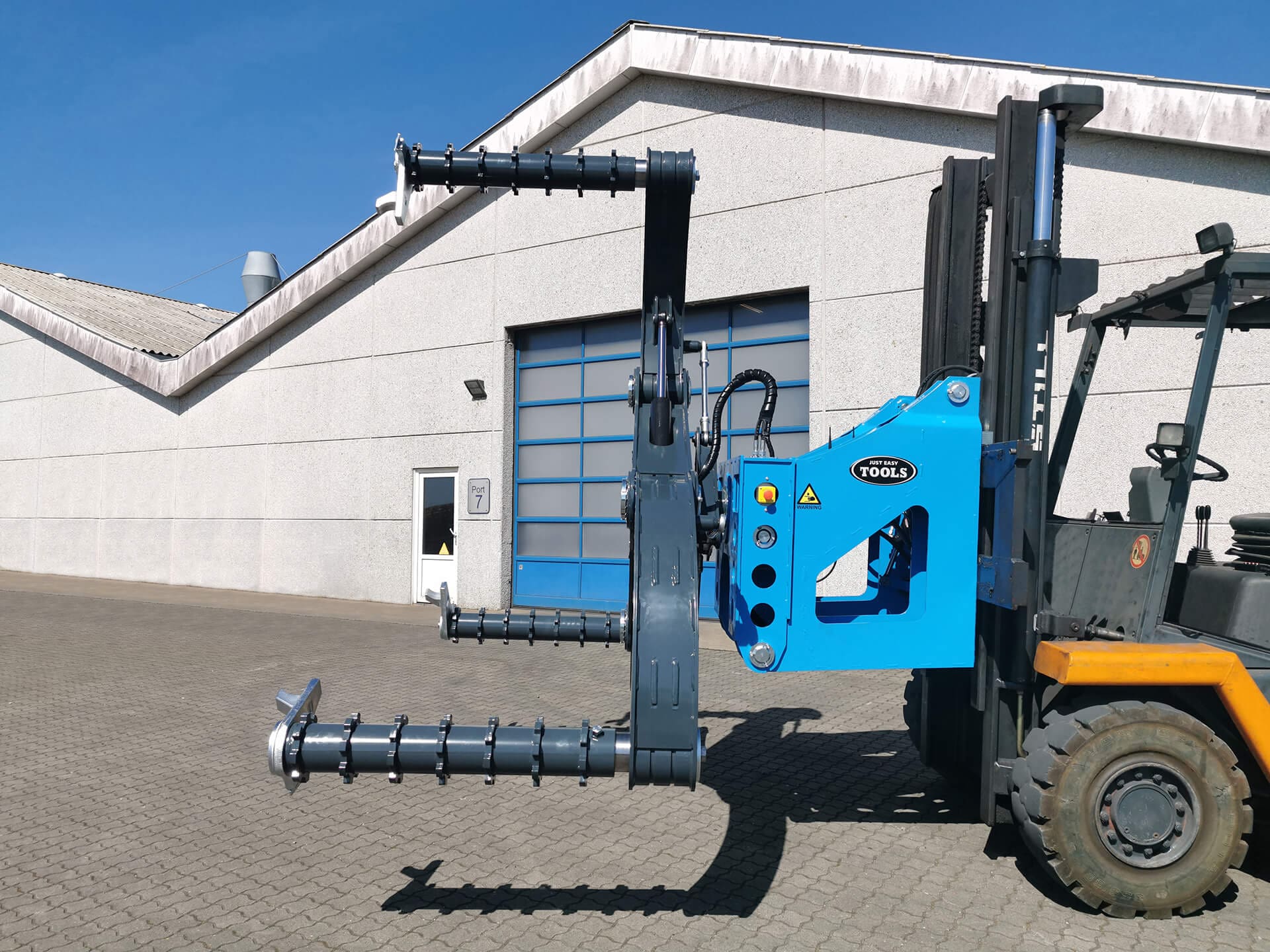

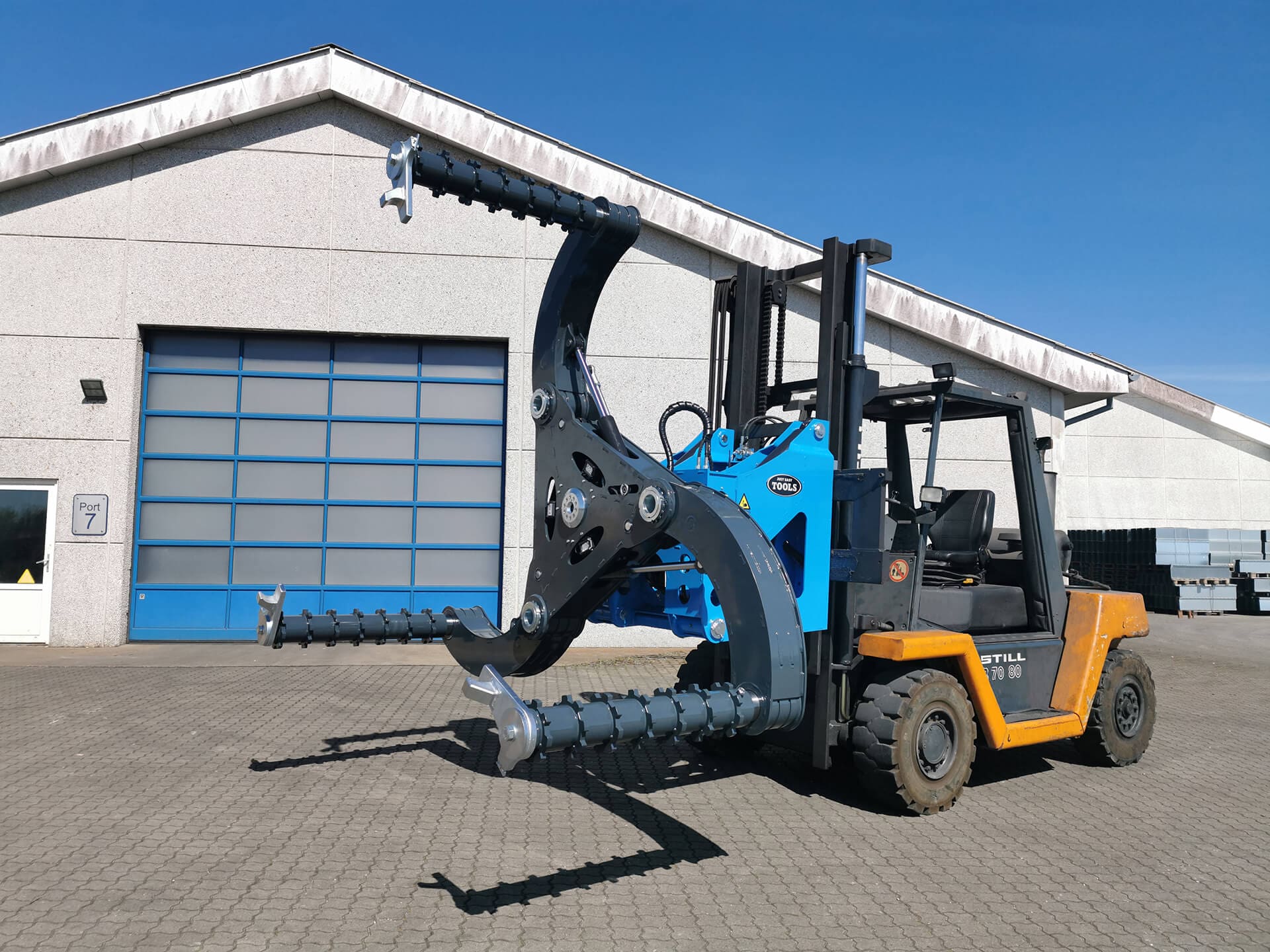

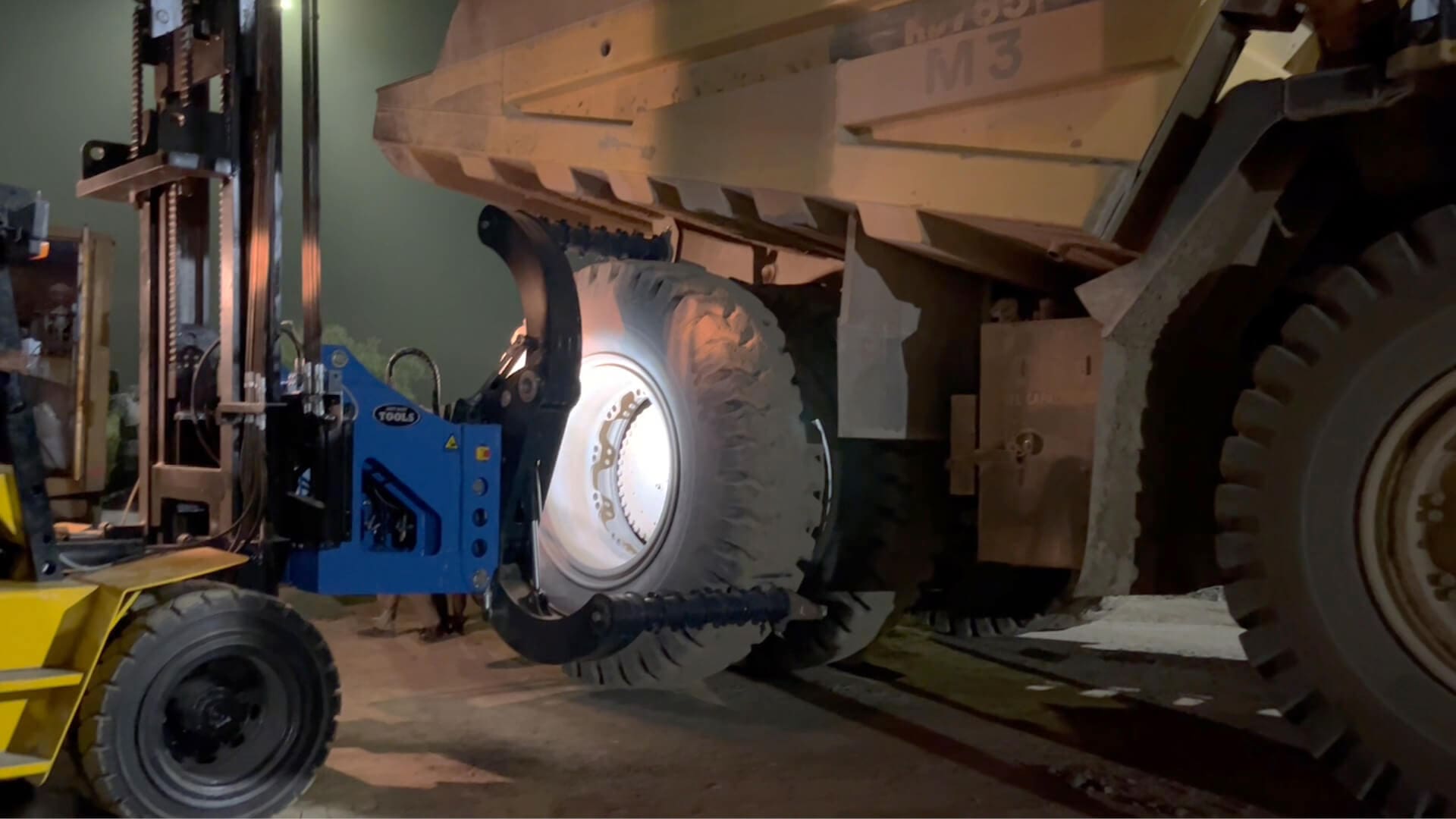

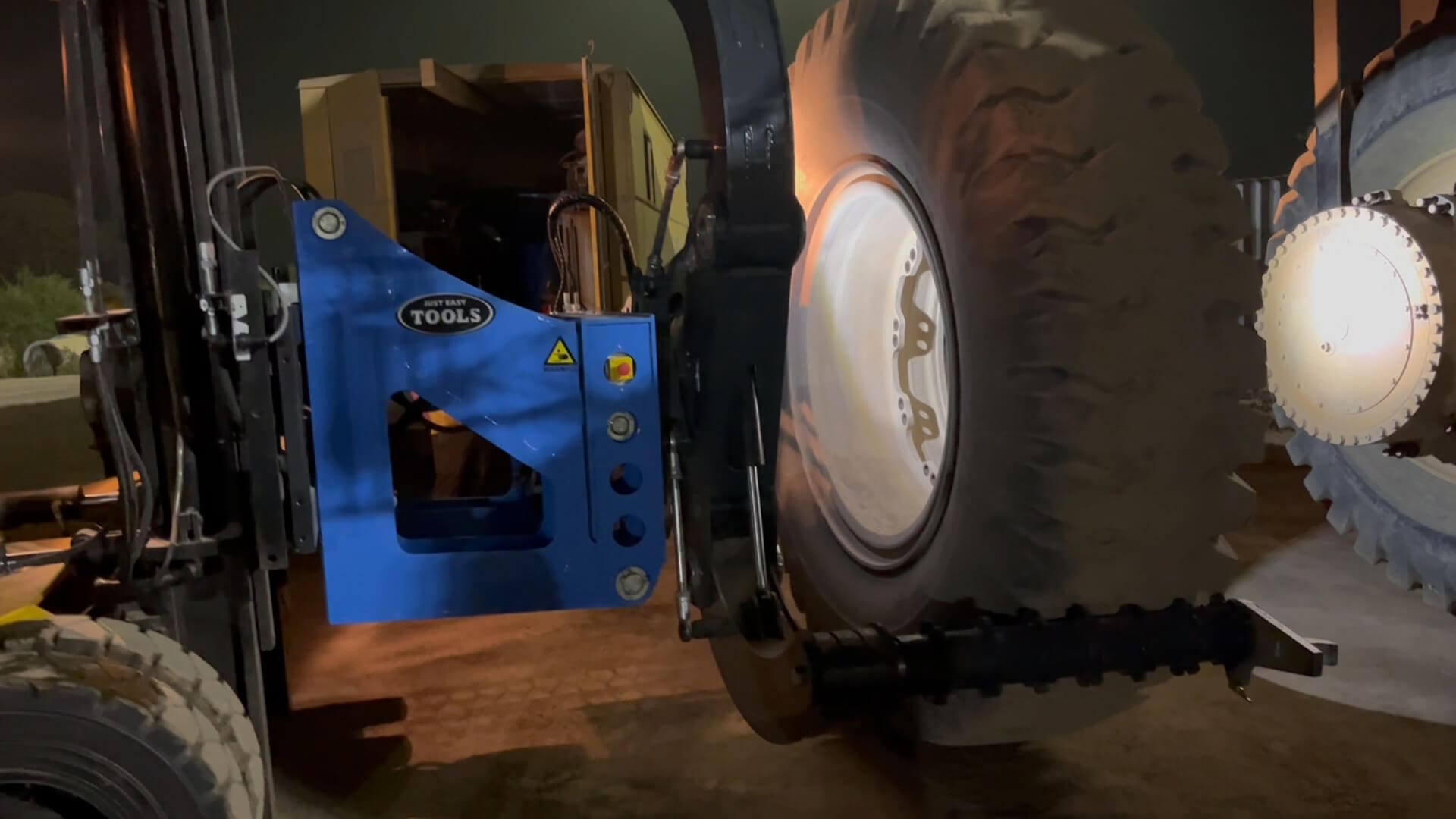

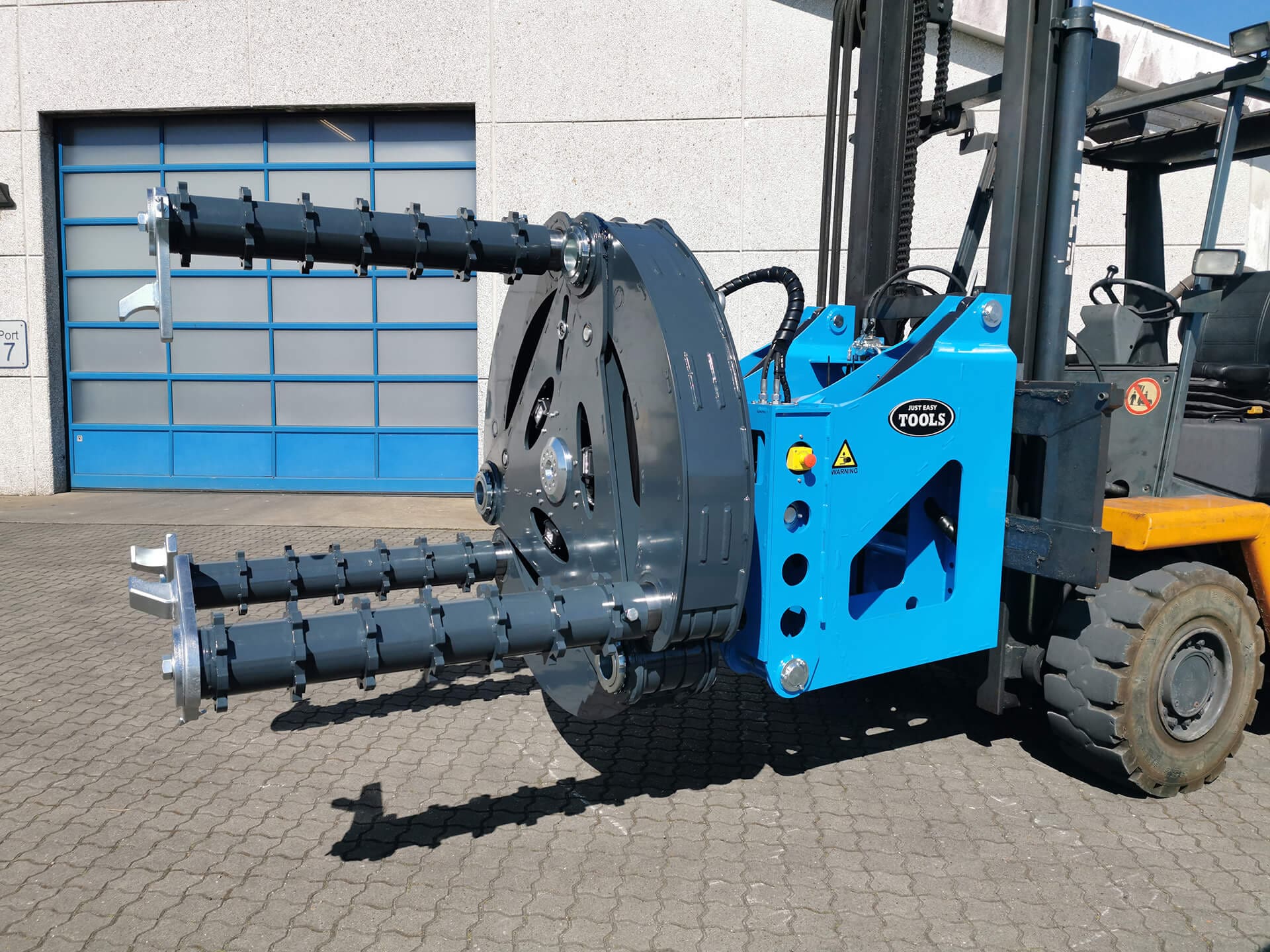

The Easy Gripper 2800-3.2T with the 90° tilt module, is ideal for use on forklifts.

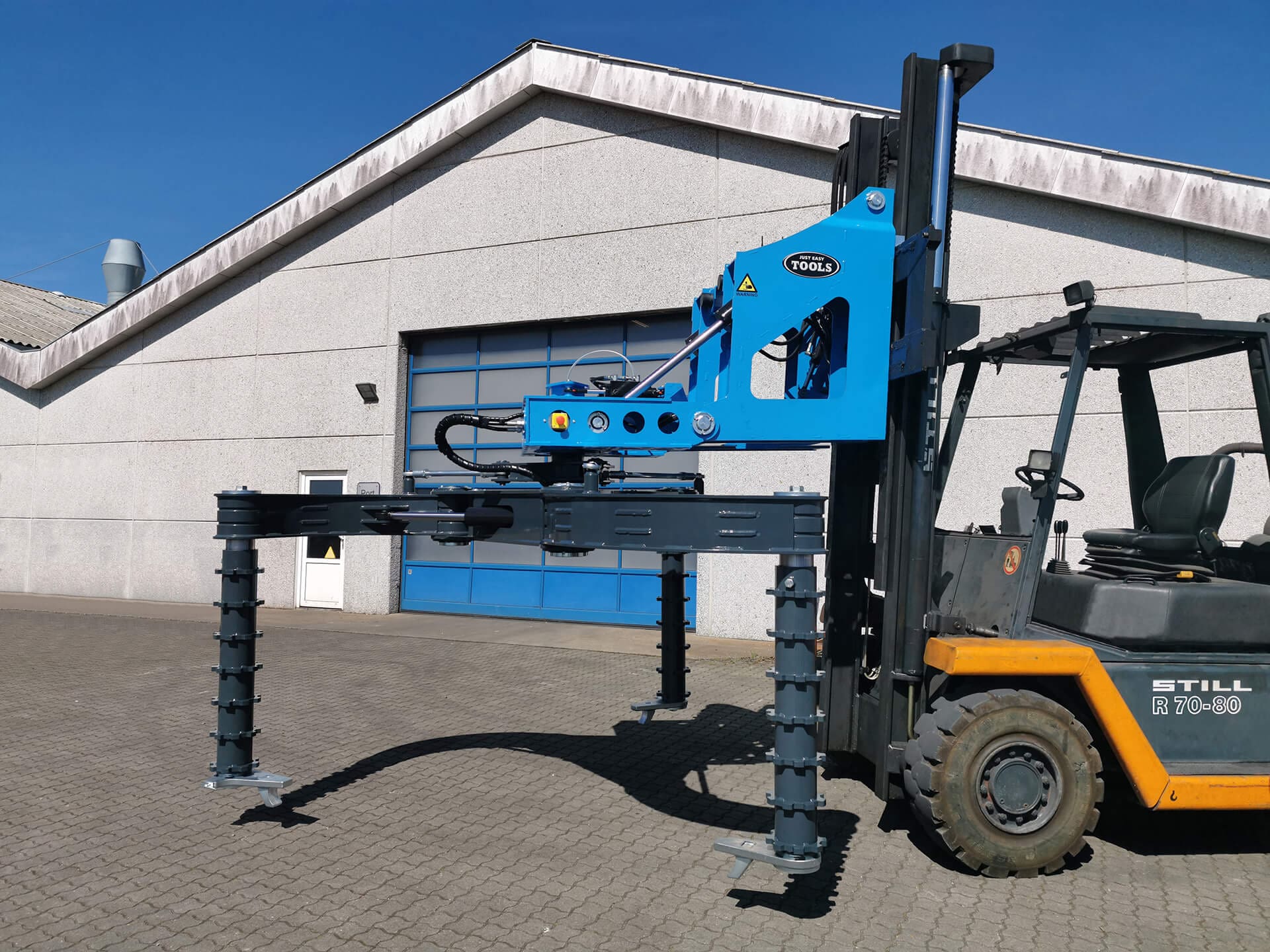

The Easy Gripper 2800-3.2T Compact without tilt or with the 35° tilt module is a good choice depending on the tilt provided by the carrier.

By use of our Crane Module, the Gripper can also fit with almost any truck crane system.

Standard features

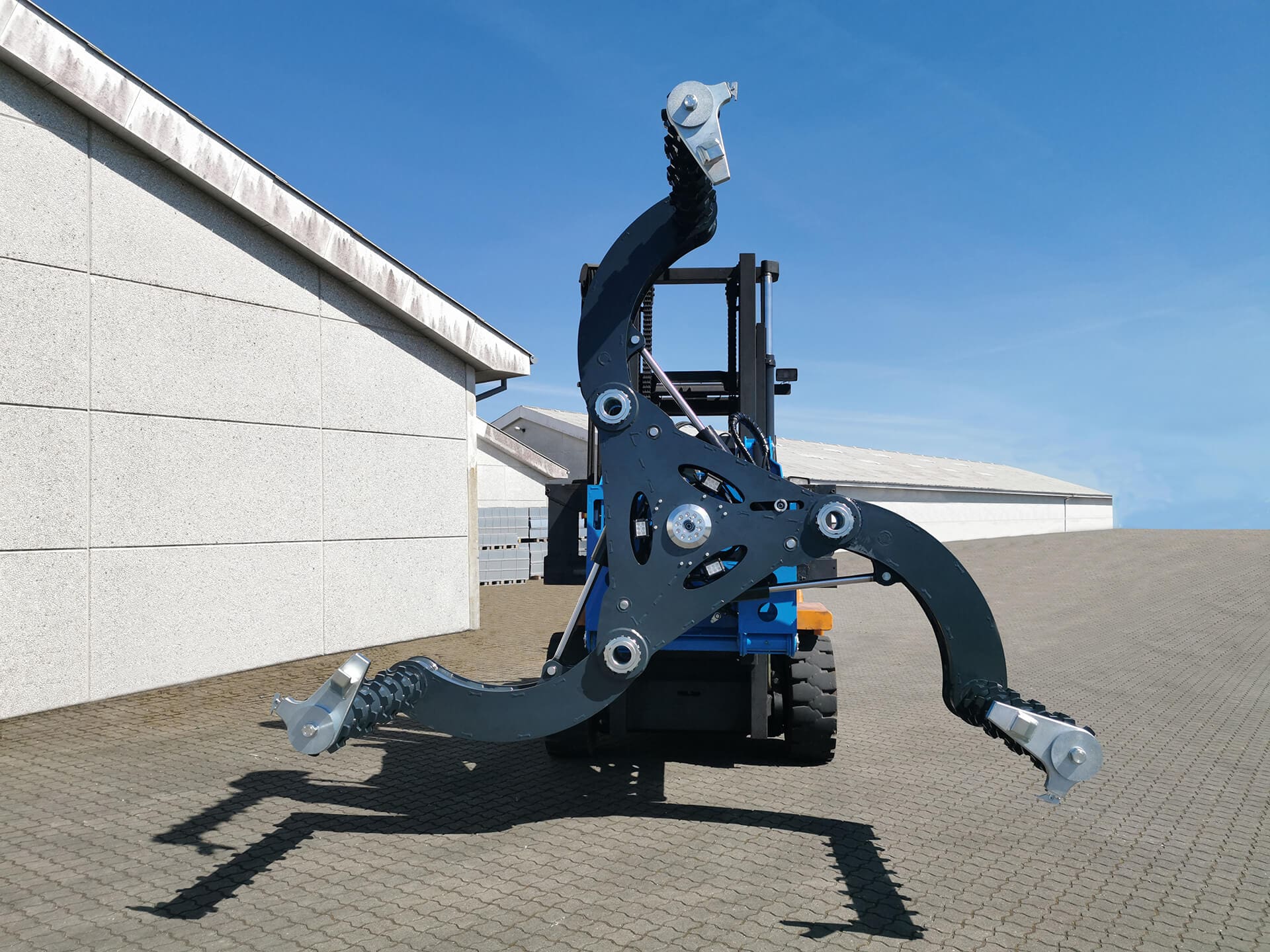

  • Unique and safe 3-point grip
    Prevents accidents.
    Prevents deformation of tyres.
    Prevents damages to tyres, rims and equipment.
  • Integrated camera system with 2 cameras
    For optimal view and for precise hub and bolt alignment.
    With automatic IR function in insufficient light conditions.
  • Precise rotation +/-25°
  • 35° or 90° tilt module, horizontal to vertical
  • LED working light
  • Customized attachment system

Optional accessories

  • Quick Shift System
    Easy hook on and off.
    Shift between Gripper and forks.
  • Easy shift of gripping pipes for various purposes
    Telescopic pipes for long reach, to provide room for the tyre technicians and for dual tyre handling.
    Flat top arm for limited tyre clearance

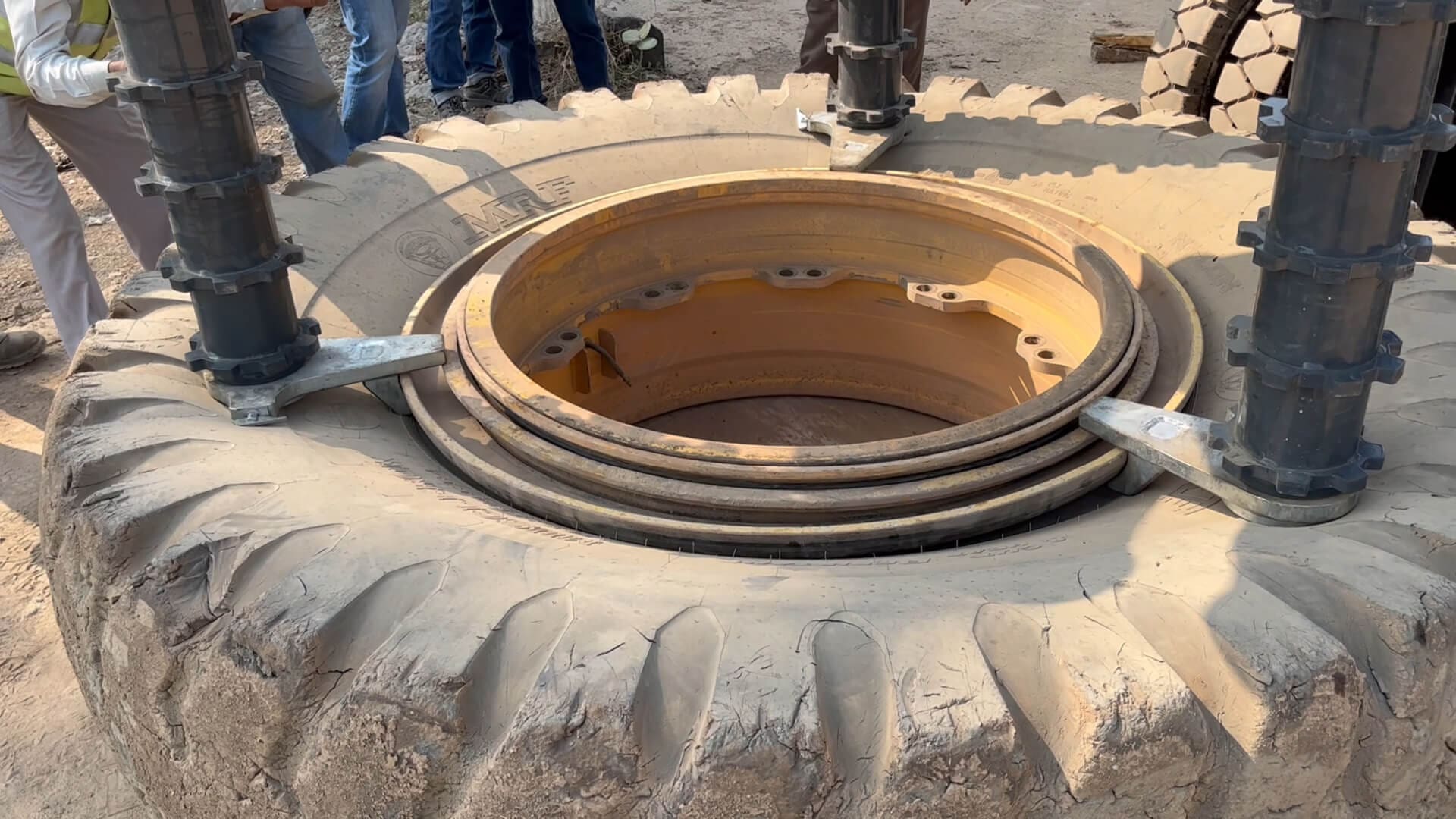

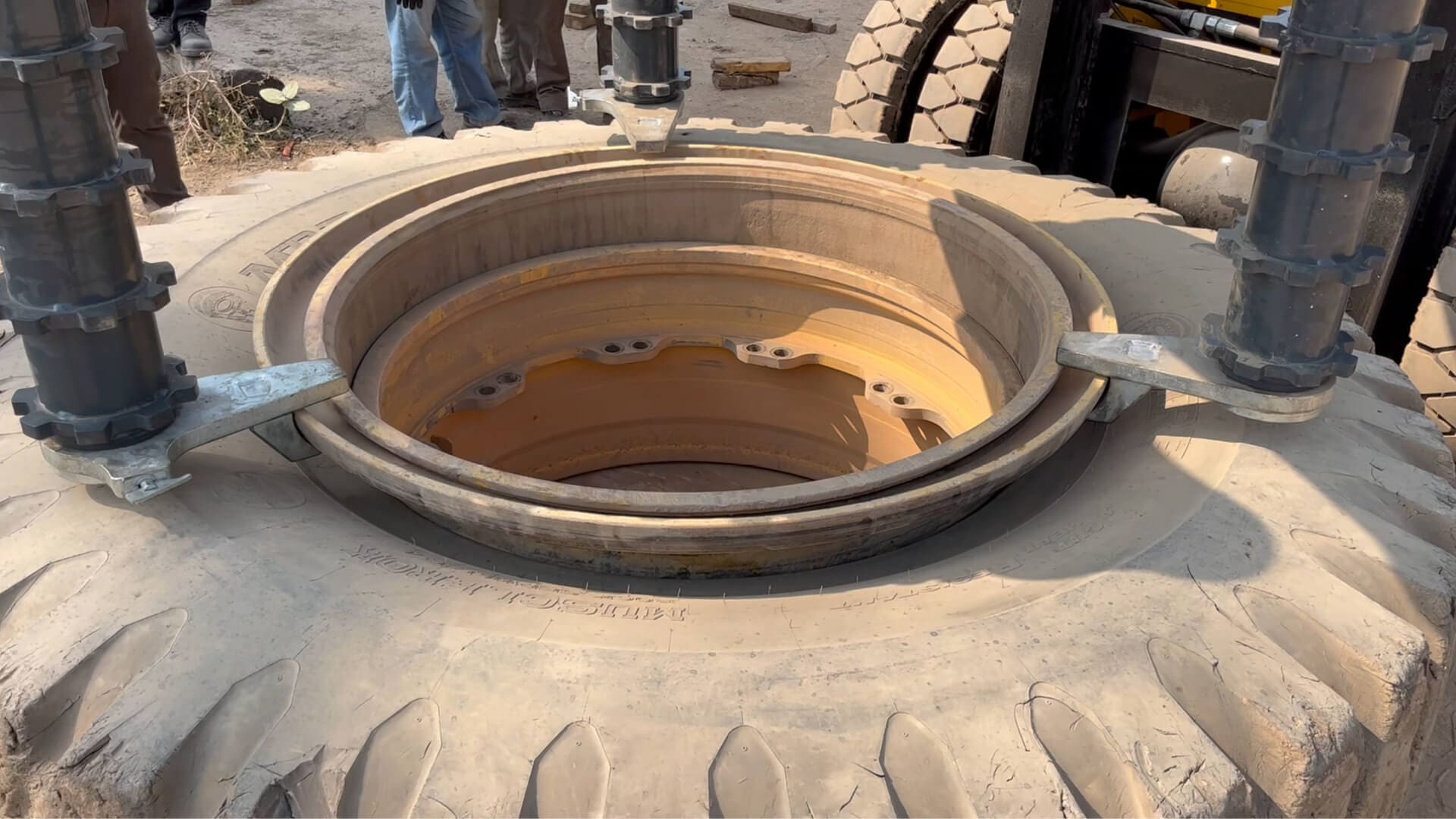

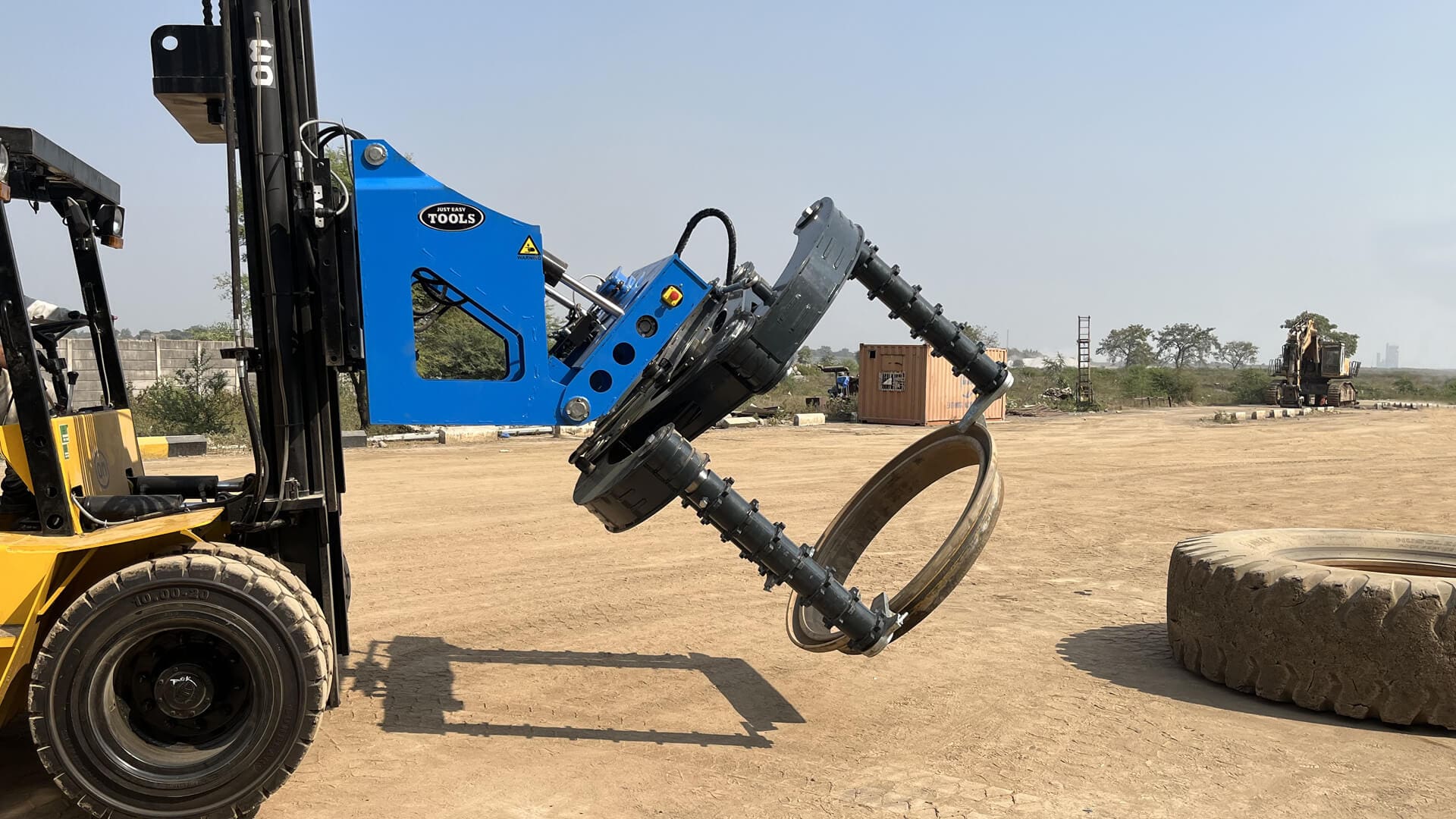

  • Tools for safe handling of tyre rings
    Special designed Ring Handling Tools for handling multi-piece rim wheels are another exclusive feature that is only available with an Easy Gripper. With the Ring Handling Tools the tyre technicians can grip, hold, press, or place tyres, rims and rings as needed

    – a major improvement of safety and efficiency!

  • Customization on request
Flyer

Technical specifications

Technical Data

  • Weight: Compact = 2.050 kg / 35°= 2.150 kg / 90°= 2.355 kg
    Lifting capacity:
    3.200 kg (7.000 lbs) at (C) from (B) 650 mm (25,6”)
    2.600 kg (5.720 lbs) at (D) from (B) 1.300 mm (51”)
  • Tyre diameter: 1.150 – 2.800 mm (45-110”)
  • Standard pipes: Ø160 x 900 mm (6,3 x 35”)
  • Telescopic pipes: Ø220 x 1.050 -> 1.700 mm (8,7 x 41 -> 67”)

Technical Requirements

  • Attachment: ISO/FEM/ITA Class 4 or 5 / Terminal West / Loader specific
  • Lifting capacity: Individual calculation
  • Electrical supply: 12/24 V / min 10A
  • Hydraulic: 1 double acting hydraulic valve
  • Pressure min-max: 150 – 250 bar (2.175 – 3.626 psi)
  • Return pressure: max. 10 bar (145 psi)
  • Flow: max. 75 l/min. (19,8 gal/min.)

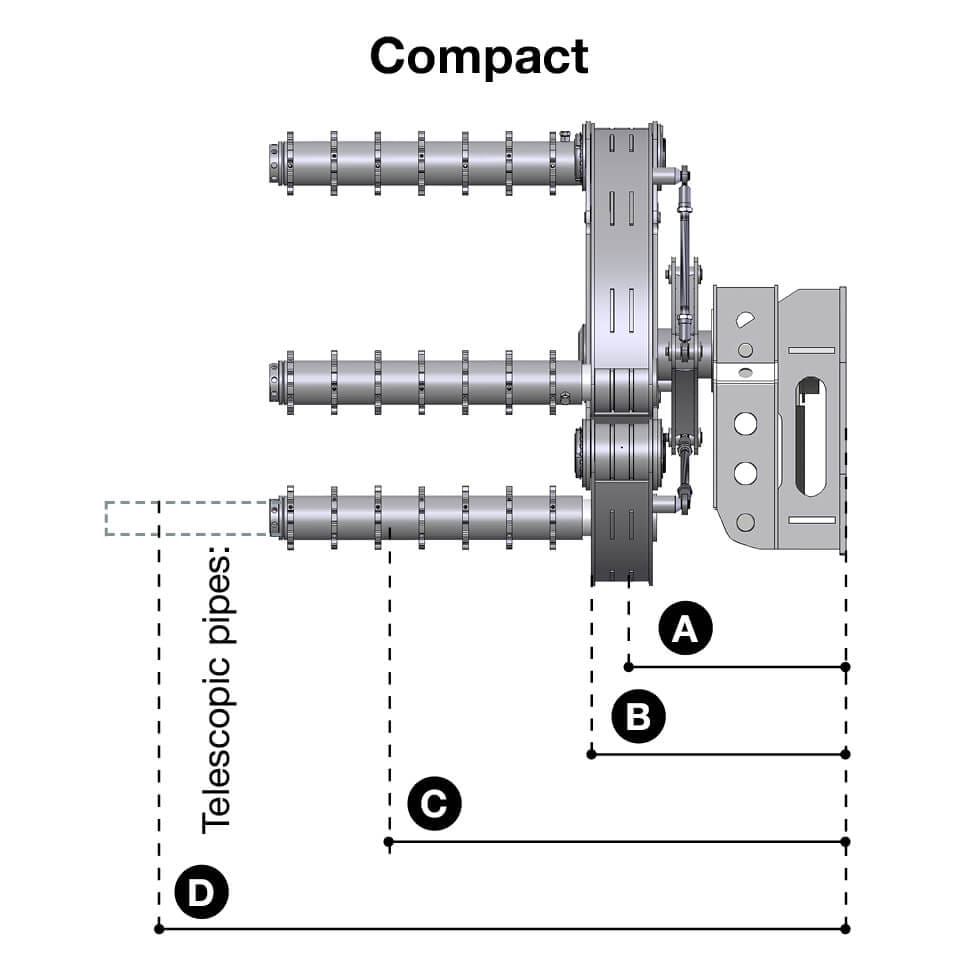

Explanatory description

(A) CoG Gripper = 700 mm (28”)
(B) Face of Gripper = 945 mm (37”)
(C) CoG Load1 = 1.600 mm (63”)
(D) CoG Load2 = 2.245 mm (88”)

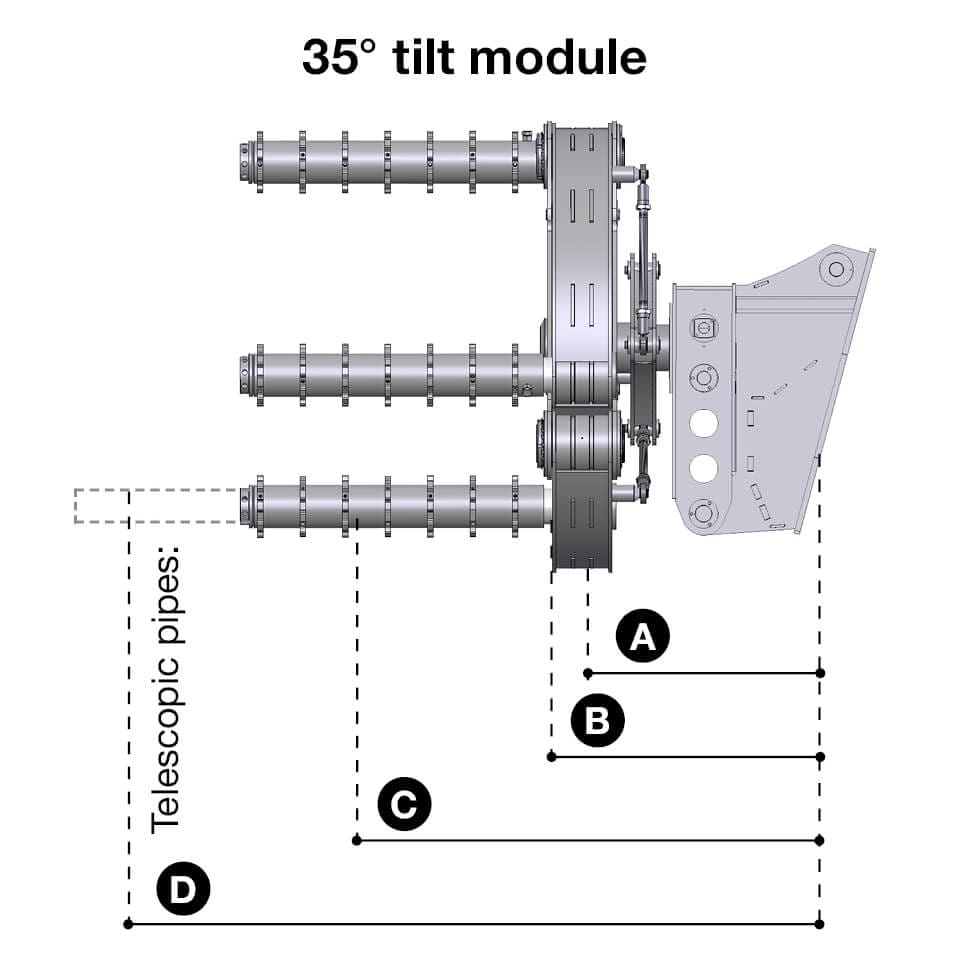

Explanatory description

(A) CoG Gripper = 800 mm (32”)
(B) Face of Gripper = 980 mm (39”)
(C) CoG Load1 = 1.630 mm (64”)
(D) CoG Load2 = 2.280 mm (90”)

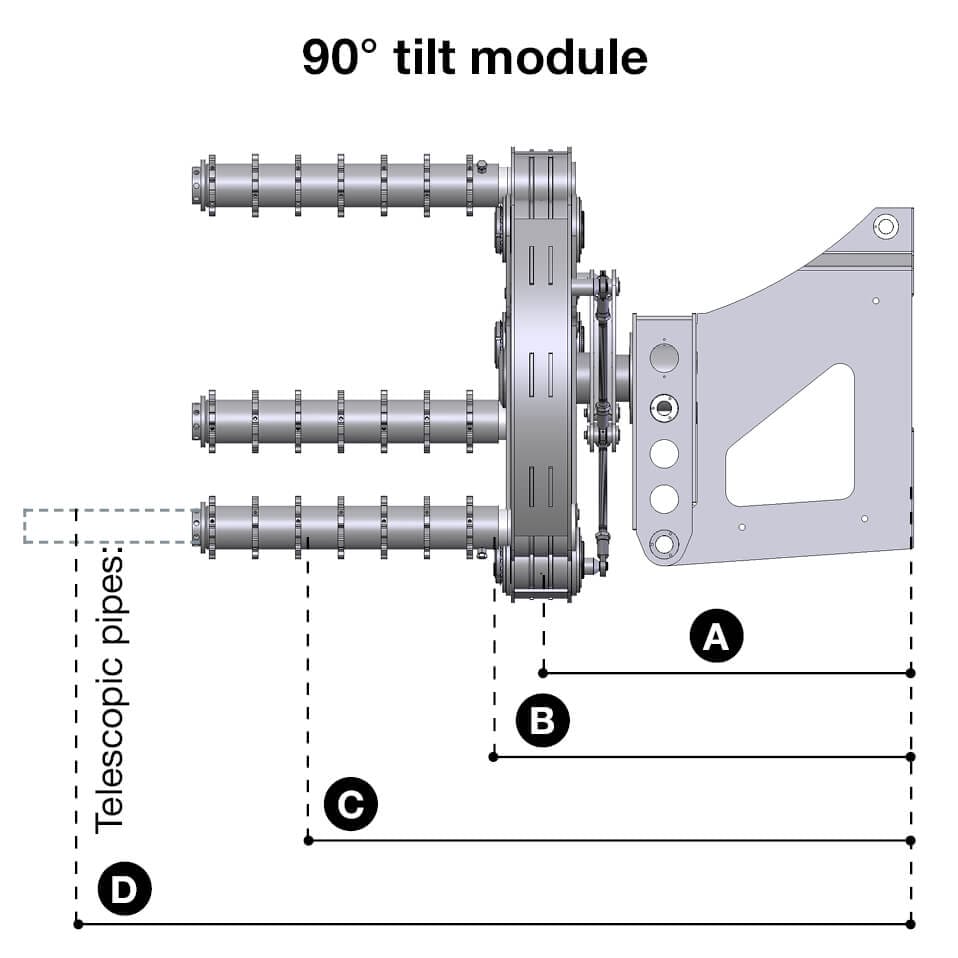

Explanatory description

(A) CoG Gripper = 1.170 mm (46”)
(B) Face of Gripper = 1.400 mm (55”)
(C) CoG Load1 = 2.050 mm (81”)
(D) CoG Load2 = 2.700 mm (106”)
