EASY GRIPPER 2400-2T COMPACT

Easy Gripper

The Easy Gripper product range is designed to help tyre professionals in a multitude of conditions and situations. Implementing The Easy Gripper makes tyre handling faster and safer, while preventing damage to tyres, rims and equipment.

Capability

With a gripping range of Ø850 – 2.400 mm (34 – 94”) and a lifting capacity of 2 ton (4.400 lbs) at a CoG of 550 mm (22”) or 530 mm (21”), the Easy Gripper 2400-2T Compact can handle tyres up to 37.25R35. When handling full wheel assemblies as inside duals, the Gripper handles up to 24.00R35 tyres.

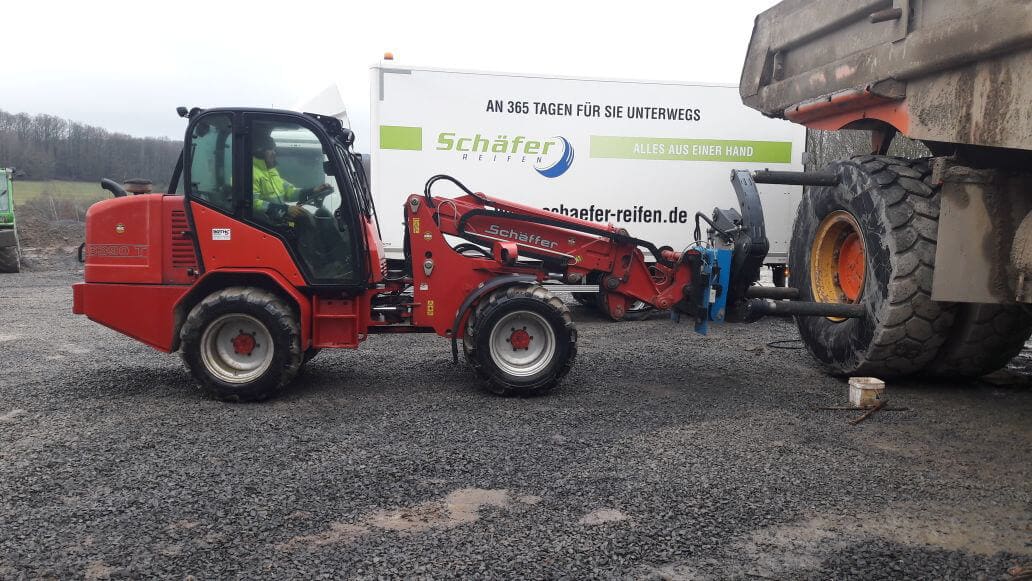

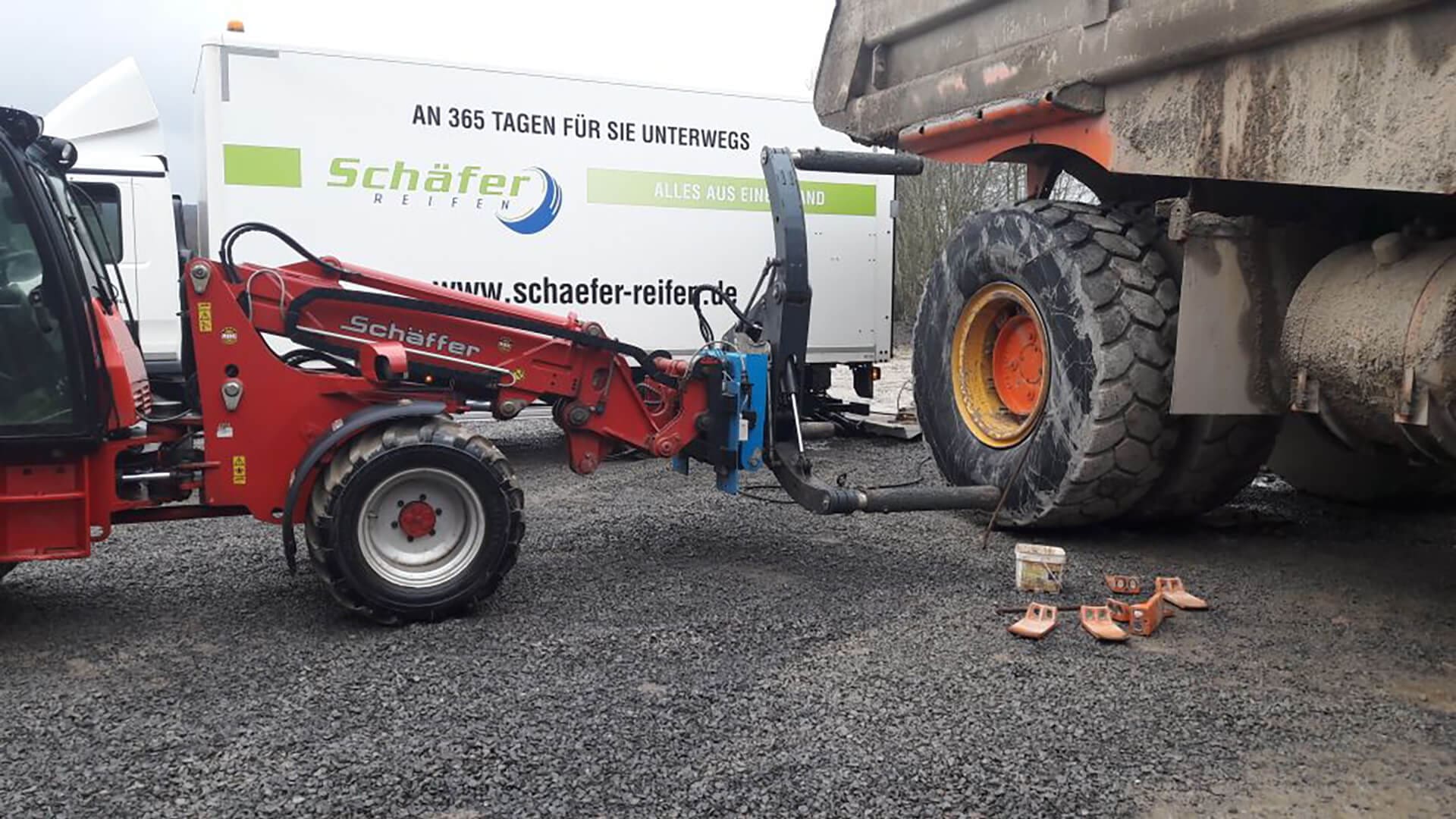

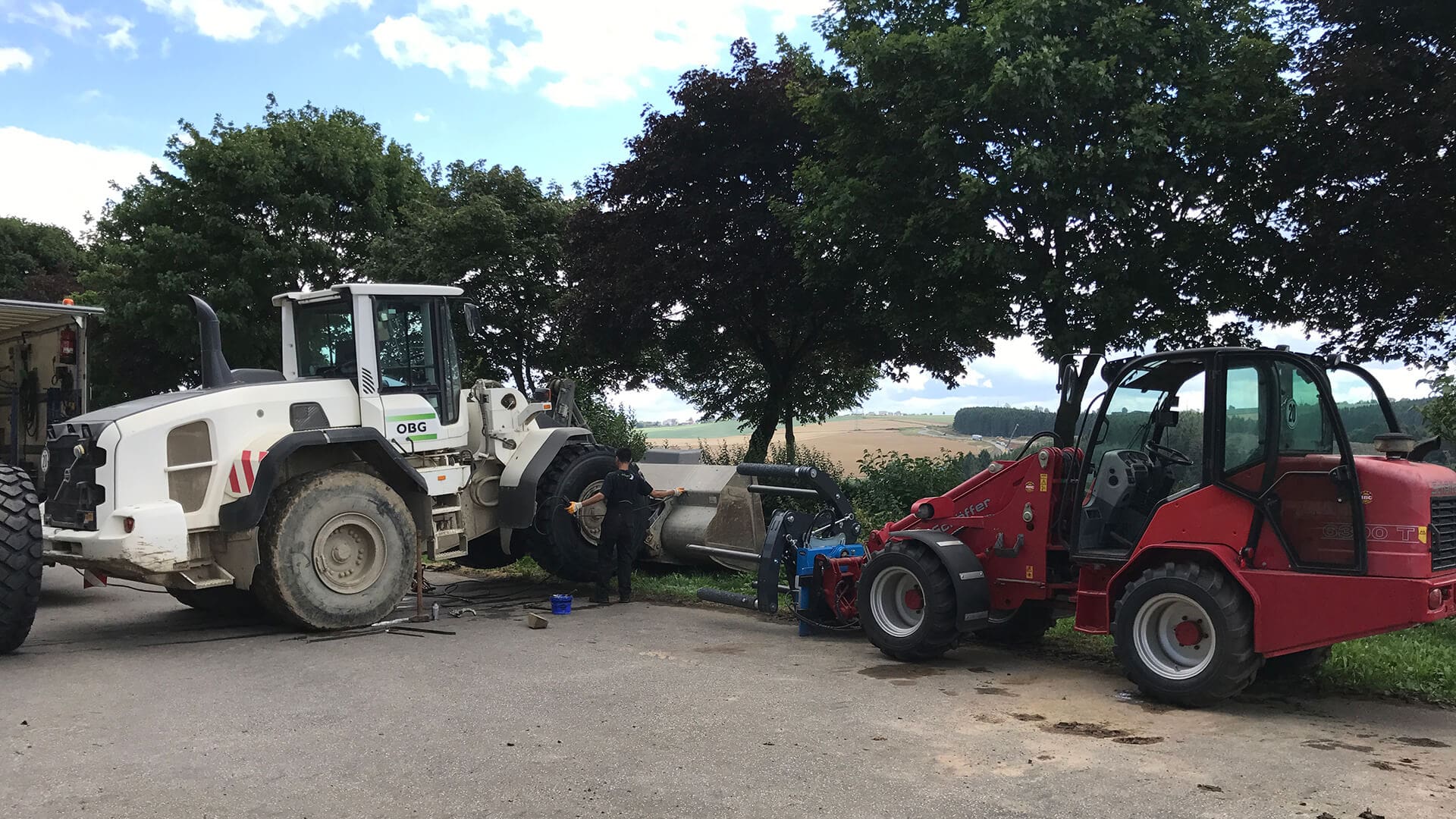

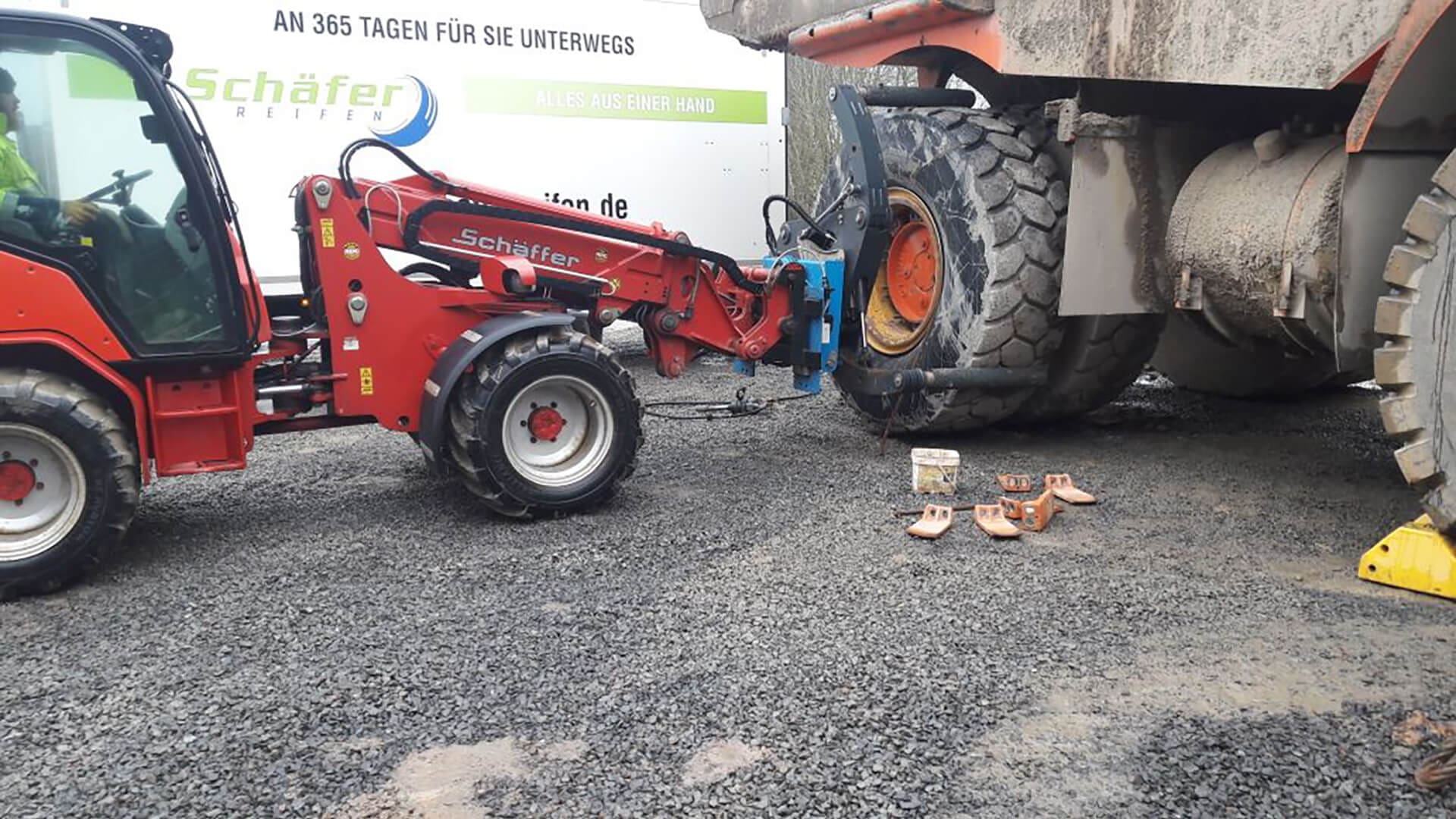

Use on electrical stackers, reach trucks, front loaders, telehandlers and truck cranes

On electrical stackers and reach trucks and when working space is limited, see Easy Gripper Workshop 2T.

The Easy Gripper 2400-2T Compact without tilt or with the 30° tilt module is a good choice depending on the tilt the carrier can provide.

By use of our Crane Module the Easy Gripper 2400-2T Compact also fit with almost any truck crane system.

Standard features

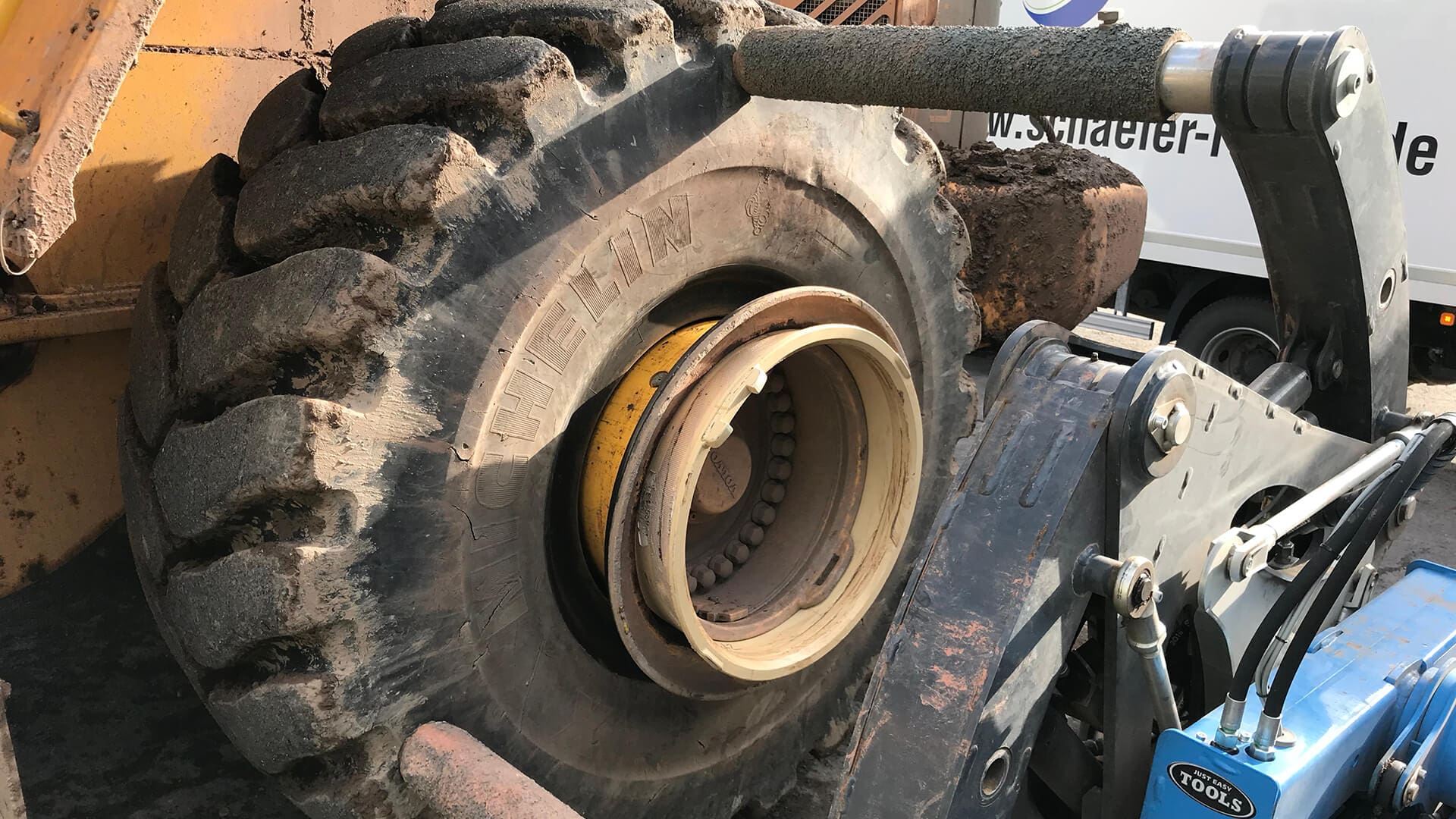

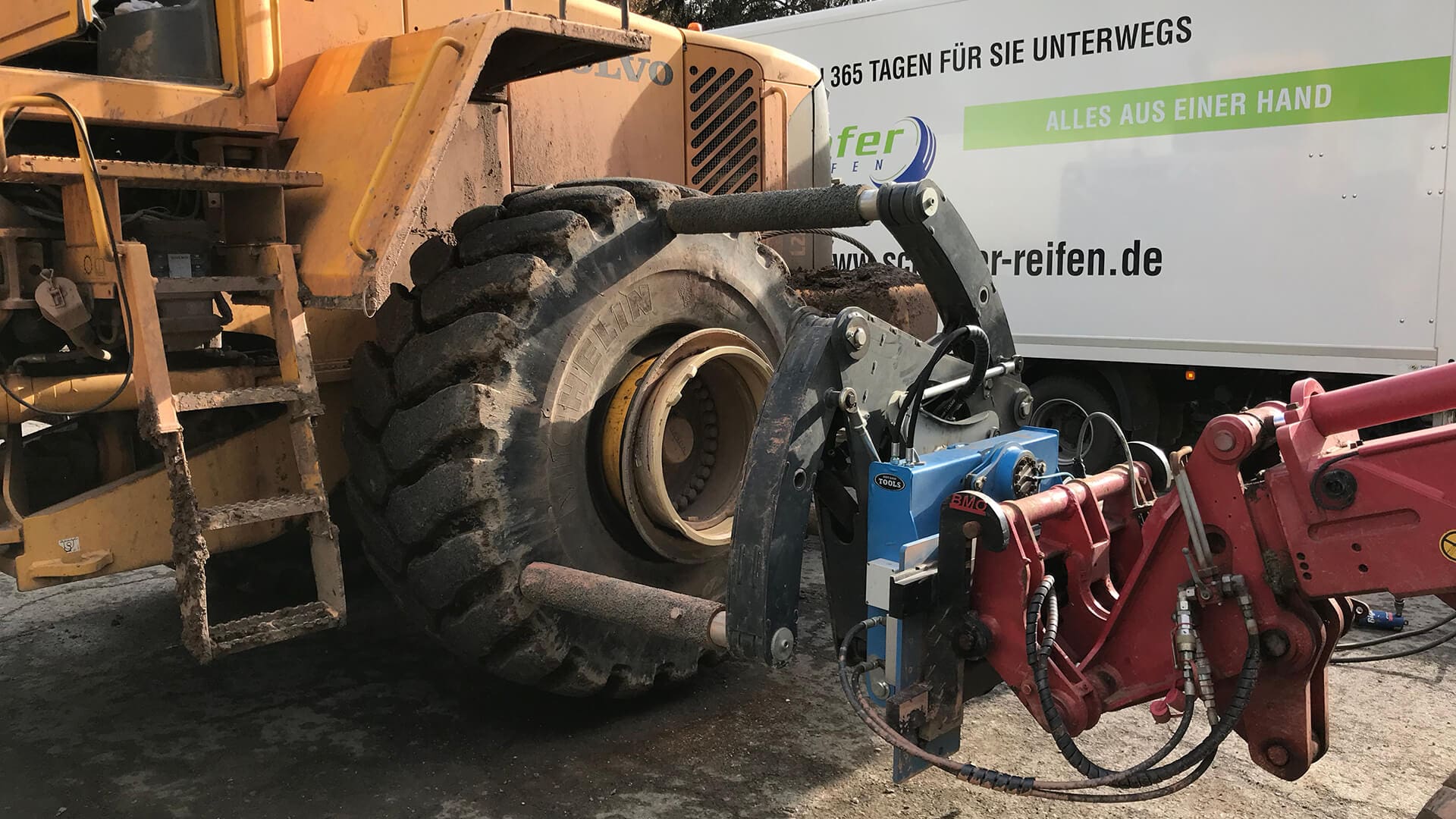

  • Unique and safe 3-point grip
  • Avoid accidents.
    Avoid deformation of tyres.
    Avoid damages to tyres, rims and equipment.
  • Integrated camera system for optimal view
    With automatic IR function in insufficient light conditions.
  • Precise rotation +/-25°
  • Horizontal to vertical tilt depending on carrier
  • Compact attachment system
    Can be customized depending on carrier.

Optional accessories

  • Easy shift of gripping pipes for various purposes
    Flat top arm for limited tyre clearance.
    Telescopic pipes for long reach, to provide room for the tyre fitters and for dual tyre handling.
  • Tools for safe handling of tyre rings
    To help tyre fitters with the hard and dangerous work.
    Can easily be attached at the end of the gripping pipes.
    Can push the tyre and can hold and place the rings.
  • Second camera for view of bolt diameter
    For even more comprehensive and precise handling of tyres, wheels and rings.
  • LED working light
  • Customization on request
Flyer

Technical specifications

Technical Data

  • Weight: Standard = 675 kg (1.488 lbs) / 30°= 690 kg (1.522 lbs)
  • Lifting capacity:
    2.000 kg (4.400 lbs) at (C) from (B) 550 mm / 530 mm
    1.150 kg (2.535 lbs) at (D) from (B) 1.190 mm / 1.210 mm
  • Tyre diameter: 850 – 2.400 mm (34 – 94”)
  • Standard pipes: Ø115 x 650 mm (4,5 x 26”)
  • Telescopic pipes: Ø120 x 600 -> 875 mm (4,7 x 24 -> 34”)

Requirements to carrier

  • Attachment: ISO/FEM/ITA Class 3 or 4 / Loader specific
  • Lifting capacity: Individual calculation
  • Electrical supply: 12/24 V / min 10A
  • Hydraulic: 1 double acting hydraulic valve
  • Pressure min-max: 150 – 250 bar (2.175 – 3.626 psi)
  • Return pressure: max. 10 bar (145 psi)
  • Flow: max. 50 l/min. (13 gal/min.)

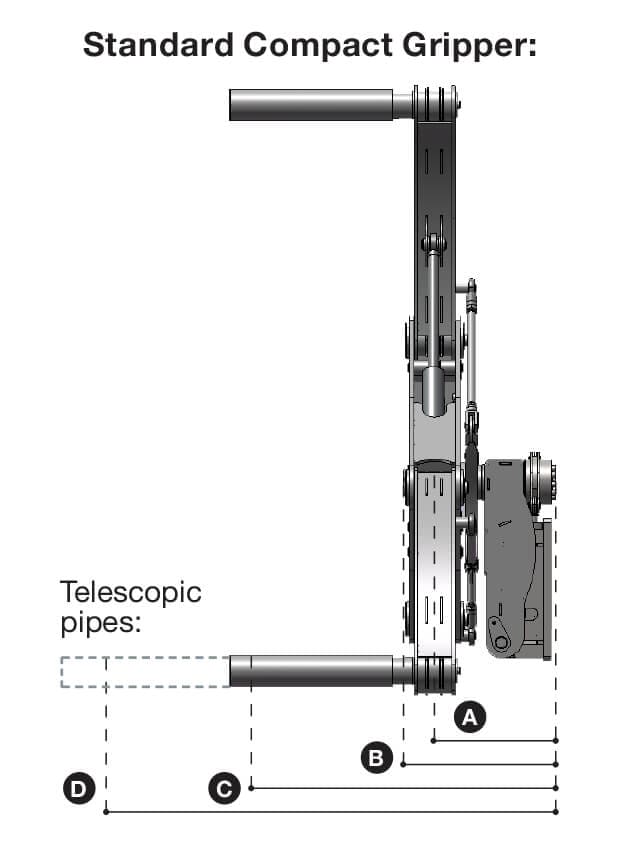

Explanatory description

(A) CoG Gripper = 430 mm (17”)
(B) Rear of Load = 490 mm (19”)
(C) CoG Load1 = 1.040 mm (41”)
(D) CoG Load2 = 1.680 mm (66”)

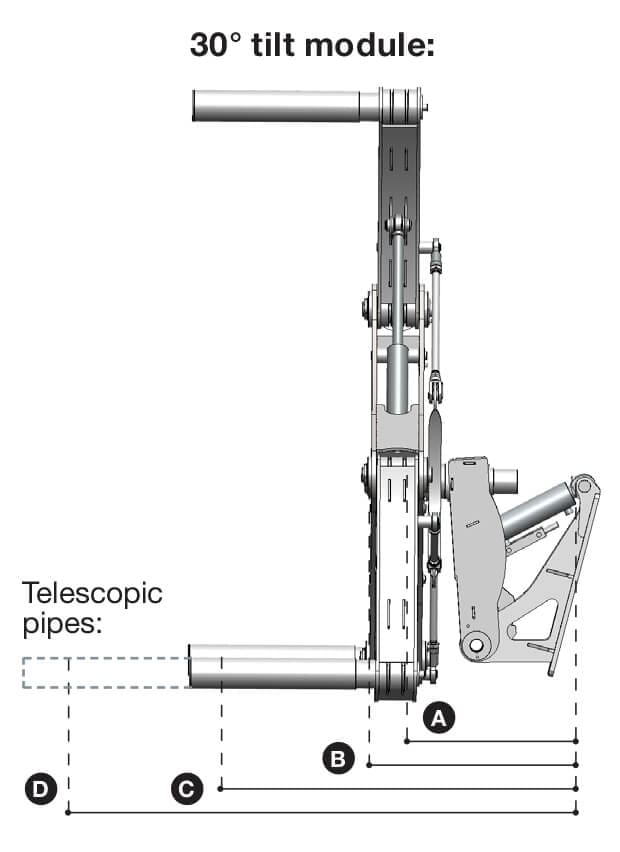

Explanatory description

(A) CoG Gripper = 550 mm (22”)
(B) Rear of Load = 740 mm (29”)
(C) CoG Load1 = 1.270 mm (50”)
(D) CoG Load2 = 1.950 mm (77”)
